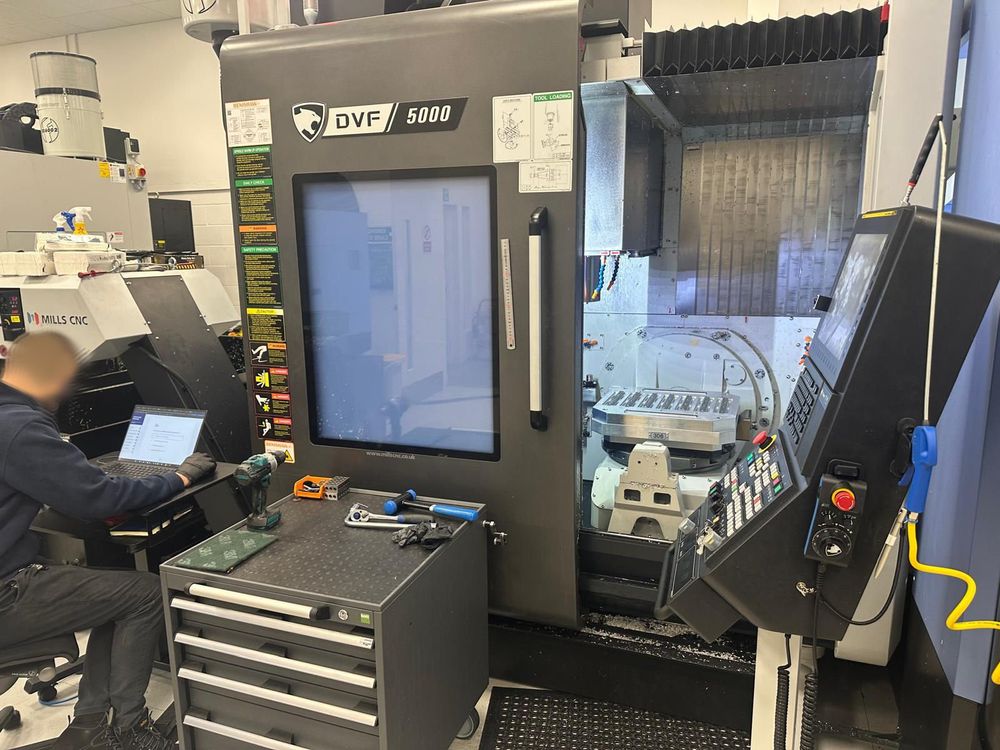

Doosan DVF5000 4 Axis

Traverses XYZ: 625 x 450 x 400 mm
Rapid Feedrates: 40 m/min
B Axis Travel: -30 ~ +110 degrees
C Axis Travel: 360 degrees
FANUC 31i Model B5 Control
Interlocked Guards
Low Volt Light
Multi Pallet Machine
Swarf Conveyor
Through Spindle Coolant
Tool Setter
Maximum Tool Diameter: 75 mm
Maximum Tool Diameter with Empty Adjacent Pockets: 125 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 8 kg
Maximum Workpiece Height: 450 mm
Maximum Workpiece Size: 550 mm
Maximum Workpiece Weight: 400 kg
Min - Max Height under Spindle: 150 - 550 mm
Number of Pallets: 24
Spindle Motor Power: 18.5/11 kW
Spindle Speed: 12,000 RPM
Table Size: 500 x 450 mm
Tool Change Capacity: 30 Station
Tool Size: BT40
Machine Weight: 7,500 kg
