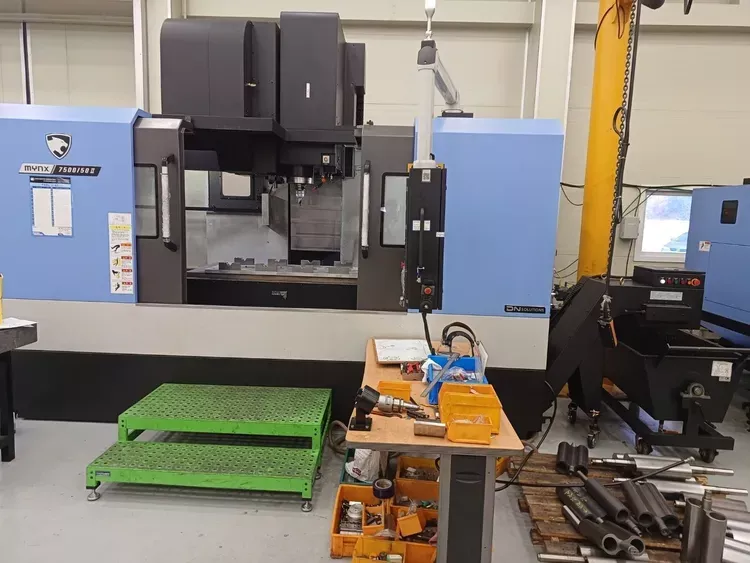

Doosan DN SOLUTION MYNX 7500/50 II 3 Axis

DN SOLUTION MYNX 7500/50 II
Year: 2023

Number of tables/pallets: 1
Table length: 63"
Table width: 29.5"
Max table load: 2,011 lb
Spindle nose to table top: 7.9" – 32.4"
X-axis travel: 60"
Y-axis travel: 30.3"
Z-axis travel: 24.6"
X-axis rapid traverse: 1,182 in/min
Y-axis rapid traverse: 1,182 in/min
Z-axis rapid traverse: 945 in/min
Spindle speed: 6,000 RPM
Spindle taper: CAT 50
Number of gear ranges: 2
Main motor: 30 HP
Tool changer capacity: 24
Tool diameter (adjacent): 4.9"
Tool diameter (empty adjacent): 8.7"
Tool length: 13.8"
Max tool weight: 44 lb
Machine weight: 29,800 lb
Control: DOOSAN Fanuc Series I CNC

DOOSAN Fanuc Series I CNC control
Thru spindle coolant
Chip conveyor
Rigid tapping
Auto power off
Portable handheld MPG
15" color CRT
BIG PLUS spindle
Air blower
Spindle chiller
Tool load monitoring system
400 tool offsets
Embedded Ethernet
2MB program storage
1GB data server
Doosan Easy Operating System
