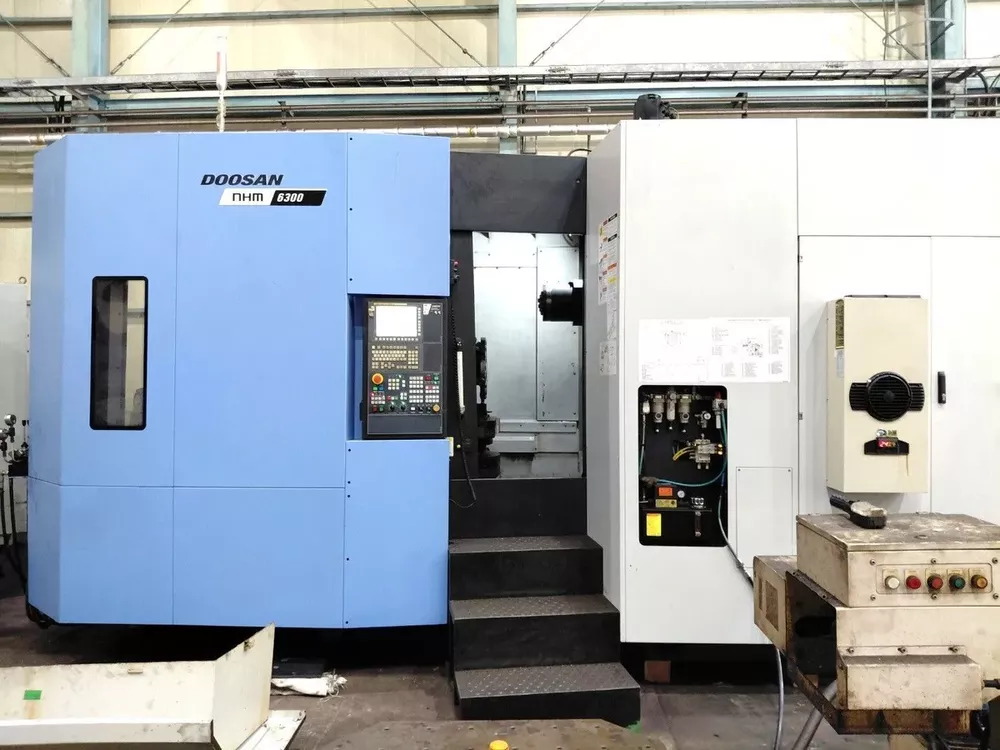

Doosan DN SOLUTIONS NHM 6300 4 Axis

X-Axis Travel: 41.3 in
Y-Axis Travel: 35.4 in
Z-Axis Travel: 39.4 in
B-Axis Travel: 1 degree

Pallet Size: 24.8 in x 24.8 in
Number of Pallets: 2
Pallet Load Capacity: 3,307 lb

CNC Control: FANUC 31i-B Color Control
Memory: 2MB (5120 meters)
Ethernet: Embedded
USB Port: Yes
Custom Macro: Yes
Rigid Tapping: Yes
Tool Offsets: 200 pairs

Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Ranges: 2
Main Motor Power: 50 kW
Spindle System: BIG-PLUS Spindle
Through Spindle Coolant: Yes (high pressure)
Spindle Air Curtain: Yes
Spindle Chiller: Yes

Tool Changer Capacity: 60 tools
Tool Diameter Range: 4.9 in – 12.6 in
Tool Length: 27.6 in
Tool Weight: 55.1 lb

Probe: Renishaw OMP 60
Tool Setter: Yes
Chip Conveyor: Yes
Coolant System: Flood & Shower Coolant
Mist Collector: Yes
Air Conditioning Cabinet: Yes
MPG Hand Pendant: Yes
PCMCIA Slot: Yes
Spindle Load Monitoring: Yes

Machine Weight: 39,700 lb
Machine Type: Horizontal Machining Center
Axis Count: 3 + B-axis indexing
Workpiece Size: 41.3 in x 53.1 in (H)
