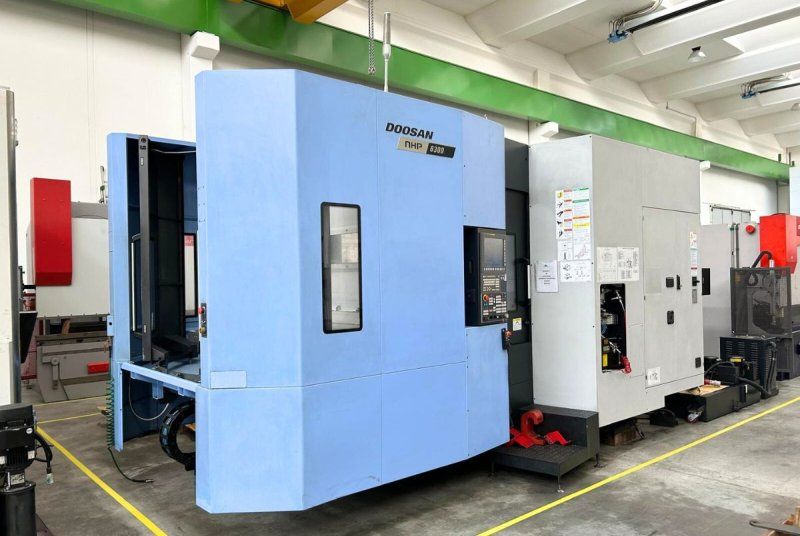

Doosan NHP 6300 4 Axis

X-axis travel 1050 mm
Y-axis travel 900 mm
Z-axis travel 1000 mm
Rapid feeds X-Y-Z 60 m/min
4-axis
Continuous pallet
Fanuc 31i control unit
Tool setter
Pallet size 630x630 mm (n. 2)
Max admitted load 1500 Kg
Max machinable piece dimensions ø1050 x 1350 mm
Spindle speed 10000 rpm
Spindle motor power 25-45 kW
Spindle torque 600 Nm
Spindle taper ISO 50 - BT
Distance spindle nose-table 100 - 1100 mm
Tool magazine chain-type (90 positions)
Machine size 6520 x 3930 x 3495 mm
Weight 18000 Kg
Horizontal machining centre with pallet changer
Swarf conveyor
Working hours 3300
