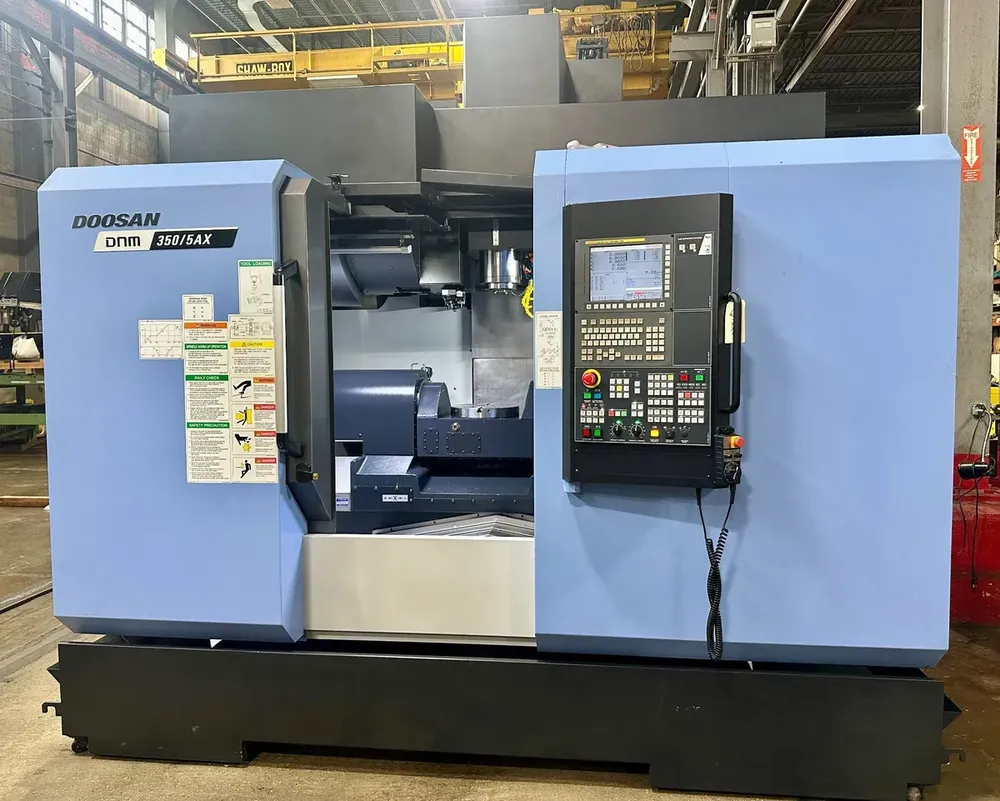

Doosan DNM 350/5AX 5 Axis

X-Axis Travel: 23.622 in
Y-Axis Travel: 25.787 in
Z-Axis Travel: 19.685 in
A-Axis Travel: +30° to -120°
C-Axis Travel: 360°
Fanuc i-Series CNC Control
Coolant Through Spindle
Tool Presetter
Renishaw Probe
Spindle Chiller
PCMCIA Card Slot
Thermal Compensation
Spindle Orientation
Helical Interpolation
Rigid Tapping
Coolant System
Spindle Speed: 12,000 rpm
Spindle Motor: 25 hp
Spindle Taper: BIG-PLUS CAT40
Rapid Traverse X: 1,417 ipm
Rapid Traverse Y: 1,417 ipm
Rapid Traverse Z: 1,181 ipm
Automatic Tool Changer: 30 tools
Table Diameter: 13.8 in
Maximum Table Load: 551.1 lb
Maximum Workpiece Diameter: 15.7 in
Maximum Workpiece Height: 13.2 in
Maximum Clearance Table to Spindle Nose: 21.7 in
Minimum Clearance Table to Spindle Nose: 2 in
Power Supply: 220 V, 3 Phase, 60 Hz
Machine Dimensions: 118 × 117 × 124 in
Machine Weight: 18,739 lb
Cutting Hours: 187
