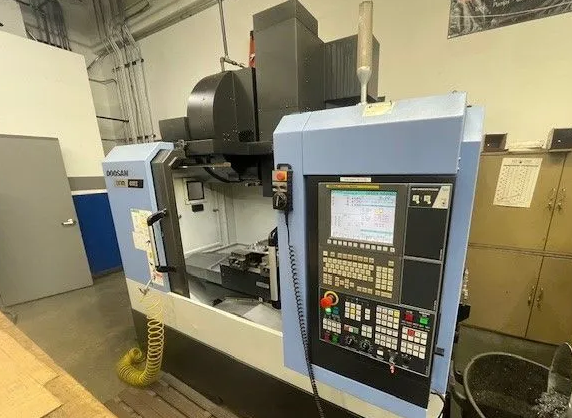

Doosan DNM 400II 3 Axis

DOOSAN DNM 400II
Year: 2016

X-axis travel: 30.0″
Y-axis travel: 17.1″
Z-axis travel: 20.1″

Rapid traverse X-axis: 1,417 IPM
Rapid traverse Y-axis: 1,417 IPM
Rapid traverse Z-axis: 1,181 IPM
Cutting feedrate: 0.04 – 590 IPM
Least command increment: 0.001 mm (0.0001″)

X-axis thrust: 1,290 lbs
Y-axis thrust: 1,290 lbs
Z-axis thrust: 2,820 lbs

Positioning accuracy: ±0.0002″
Repeatability: ±0.000080″
Table size: 36.2″ × 17.1″
Max table load: 1,320 lbs
Table T-slot spacing: 4 × 4.92″ × 0.71″
Spindle nose to table: 5.9″ to 26″
Column to spindle center: 20.2″
Spindle taper: CAT40 Big Plus
Spindle speed: 8,000 RPM
Spindle motor: 20 HP
Spindle torque: 154 ft-lbs
Spindle accel/decel time: 0–8000 RPM in 2.5 sec / 8000–0 RPM in 2.6 sec
Tool changer capacity: 30 tools
Max tool diameter (adjacent empty): 3.1″ / 4.9″
Max tool length: 11.8″
Max tool weight: 17.6 lbs
Control: Fanuc 0i-MD
Chip conveyor
Through spindle coolant
Machine dimensions: 105.1″ × 75.2″ × 92.5″
Machine footprint: 85.6″ × 103″
Chip conveyor extension: 44.8″
Machine weight: 12,125 lbs
Coolant tank capacity: 79 gallons
Lubrication tank capacity: 0.36 gallons
Air required: 80 psi / 8.83 CFM
Power requirement: 31 kVA / 94 amps @ 220V
Voltage required: 205–235V / 3-phase
