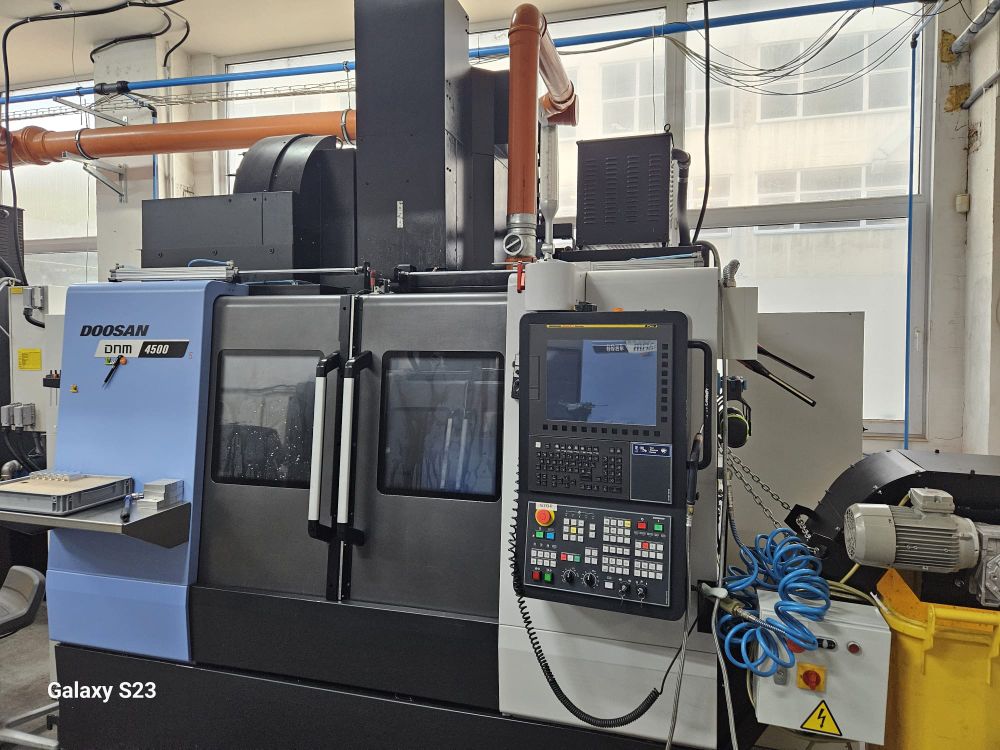

Doosan DNM 4500 3 Axis

DOOSAN DNM 4500
2020

Control: Fanuc
5-axis rotary table: Kitagawa TT200
Condition: Very good
Operational Status: Under power
Test Run Possible: Yes
Automatic Doors
Workpiece Probe: Renishaw
Tool Probe: Renishaw
Chip Conveyor

X-axis travel: 800 mm
Y-axis travel: 450 mm
Z-axis travel: 510 mm
Spindle to table distance: 150 – 660 mm
Table size (L x W): 1000 x 450 mm
Max. table load: 600 kg
T-slots: 3x 18H8, pitch 125 mm
Spindle taper: ISO 40
Max. spindle speed: 12,000 rpm
Spindle power (S3 15% / continuous): 18.5 / 11 kW
Spindle drive: Direct, beltless
Double contact spindle system ready
Tool holder: DIN 69871 – A40
Tool magazine capacity: 30 positions
Max. tool diameter (full magazine): 80 mm
Max. tool diameter (alternate slots): 125 mm
Max. tool length: 300 mm
Max. tool weight: 8 kg
High-pressure coolant: 30–70 bar
Machine dimensions (L x W x H): 2158 x 2615 x 2985 mm
Machine weight: 5000 kg
