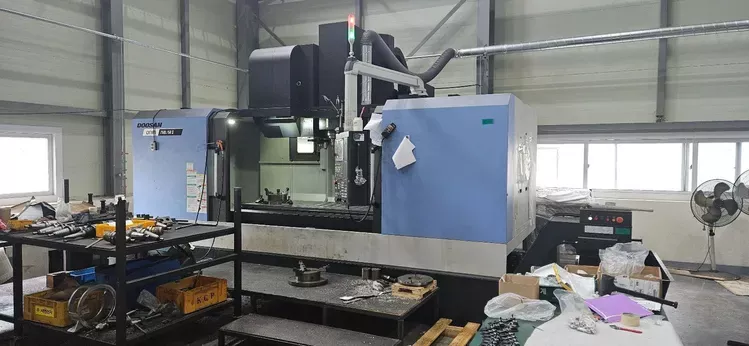

Doosan DNM 750L II 3 Axis

DOOSAN DNM 750L II
2019

Table Size: 85" (L) x 25.9" (W)
Number of Tables / Pallets: 1
Maximum Table Load: 3,978 lbs

Travels:
X-Axis: 85"
Y-Axis: 30"
Z-Axis: 25.6"

Rapid Traverse Rate:
X, Y, Z: 945 in/min

Spindle:
Max Speed: 8,000 RPM
Spindle Taper: 50
Motor Power: 30 hp

Tool Changer:
Positions: 24
Tool Length Capacity: 13.8"
Tool Weight Capacity: 44 lbs
Machine Weight: 33,730 lbs

Control & Features:
DOOSAN FANUC Series I CNC Control
Coolant Thru Spindle System
Big Plus Spindle
Chip Conveyor
Doosan Tool Load Monitoring
Ethernet Function
Samchully S-320 F-8, 320 mm NC 4th Axis Rotary Table
Rigid Tapping
