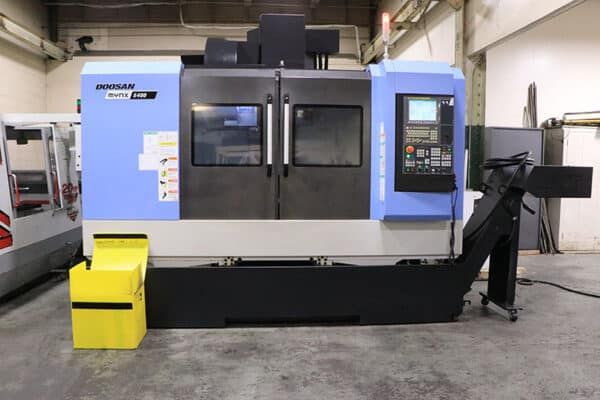

Doosan Mynx 5400 3 Axis

Doosan Mynx 5400
2015

X-AXIS TRAVEL ……………………….. 40.2″ / 1020mm
Y-AXIS TRAVEL ……………………….. 21.3″ / 540mm
Z-AXIS TRAVEL ……………………….. 20.9″ / 530mm
TABLE SIZE ………………………….. 47.2″ x 21.3″
TABLE LOAD CAPACITY ………………….. 1764 LBS
TABLE TOP TO SPINDLE NOSE …………….. 5.9″ – 26.8″
SPINDLE TAPER ……………………….. CAT-40 BIG PLUS
SPINDLE SPEED ……………………….. 8,000 RPM
SPINDLE MOTOR ……………………….. 30 HP
SIDE MOUNT TOOLCHANGER ……………….. 30 ATC
RAPID TRAVERSE RATE (X,Y/Z) …………… 1181/945 IPM
CUTTING FEED RATES …………………… .04 – 472 IPM
APPROXIMATE FLOOR SPACE …………… 96.2″ x 132″ x 108″H
APPROXIMATE MACHINE WEIGHT ……………. 15,500 Lbs.
EQUIPPED WITH:
– FANUC SERIES 0I-MD CONTROL
– M-CODE CAPABILITY
– RENISHAW MODEL: OMP60 SPINDLE PROBE STYLUS & HARDWARE
– RENISHAW TOOL SETTER & STYLUS
– BOX WAY CONSTRUCTION
– COOLANT THROUGH SPINDLE 230 PSI
– DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER
– DUAL AUGERS
– LEFT HAND HINGE BELT TYPE CHIP CONVEYOR
– 20 HORSE POWER SPINDLE MOTOR
