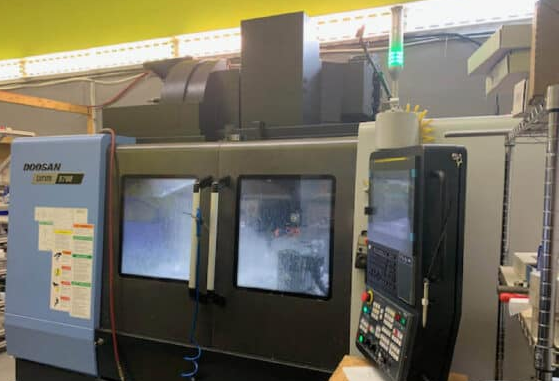

Doosan DNM5700 3 Axis

DOOSAN DNM5700
Year: 2021

X-axis travel: 41.33″
Y-axis travel: 22.44″
Z-axis travel: 20.08″

Rapid traverse X and Y: 1,417 IPM
Rapid traverse Z: 1,181 IPM

Table size: 51.18″ × 22.44″
Max table load: 2,205 lbs

Spindle speed: 12,000 RPM
Spindle motor: 25/15 HP
Spindle torque: 211 ft-lbs
Spindle nose: CAT40

Tool changer capacity: 30 tools
Chip-to-chip change time: 4.7 sec
Tool-to-tool change time: 1.5 sec
Max tool length: 13.78″
Max tool weight: 17.6 lbs
Control: Doosan Fanuc i Series
Chip conveyor
Rotary 4th axis: Samchully
Machine footprint (with chip conveyor): 117″ × 113″ × 108″
Machine weight: 14,200 lbs
