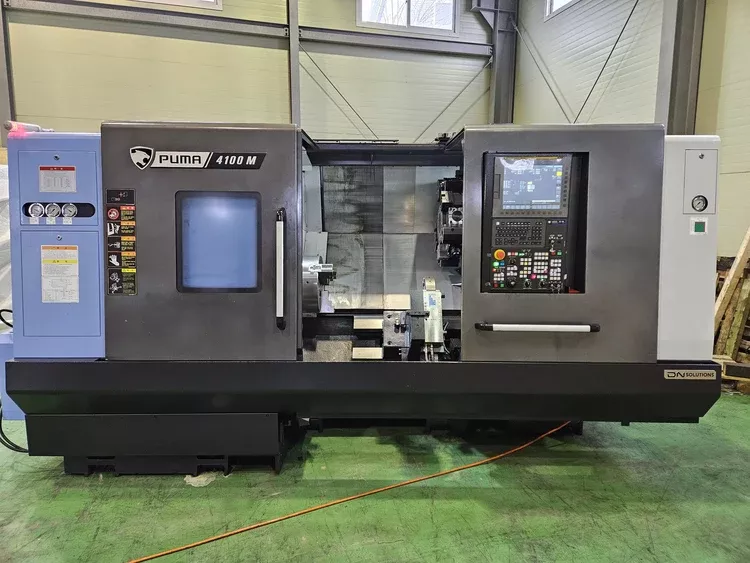

Doosan DOOSAN EZ GUIDE I Conversational Programming 2000 RPM DN SOLUTIONS PUMA 4100MB 7 Axis

X-Axis Travel 1 14.3"
X-Axis Travel 2 14.3"
Z-Axis Travel 1 43.5"
Z-Axis Travel 2 43.5"
C-Axis Travel 1 0.001°
C-Axis Travel 2 0.001°
W-Axis Travel Sub Spindle 0

Rapid Traverse Rate X1 630 IPM
Rapid Traverse Rate X2 630 IPM
Rapid Traverse Rate Z1 787 IPM
Rapid Traverse Rate Z2 787 IPM
Rapid Traverse Rate W-Axis 0
Rapid Traverse C-Axis 0

Turret Configuration 1 12
Turret Configuration 2 12
Turret Rotary Tool Spindle Speed 1 4,000 RPM
Turret Rotary Tool Spindle Speed 2 4,000 RPM
Turret Rotary Tool Horsepower 1 14.8 HP
Turret Rotary Tool Horsepower 2 14.8 HP

Tailstock Quill Diameter 4.7"
Tailstock Taper MT 6
Tailstock Quill Travel 4.7"
Programmable Tailstock YES
Tailstock Travel 39.4"

Swing Over Bed 31.1"
Turning Diameter, Shaft Diameter 22"
Machining Length 38.5"
Distance Between Centers 44.7"
Distance Between Spindles 0
Chuck Size 1 15"
Chuck Size 2 15"

Spindle Nose 1 A2-11
Spindle Nose 2 A2-11
Spindle Bore Diameter 1 5.2"
Spindle Bore Diameter 2 5.2"
Spindle Bar Capacity 1 4.6"
Spindle Bar Capacity 2 4.6"
Spindle Speeds 1 2,000 RPM
Spindle Speeds 2 2,000 RPM

Gear Ranges 2
Spindle Horsepower 1 50 HP
Spindle Horsepower 2 50 HP
Spindle Torque 0

Machine Weight 25,352 lbs
DOOSAN EZ GUIDE I Conversational Programming
Tool Presetter
SMW SLU-4-ZS Hydraulic Steady Rest (9.68" Capacity)

.001 C-Axis Indexing
(2) I.D. Rotary Heads
(2) O.D. Rotary Heads
Spindle Chiller
Custom Macro
Chip Conveyor
FANUC Series I CNC Control
Automatic Tool Setter
Rotary Tools 4,000 RPM
