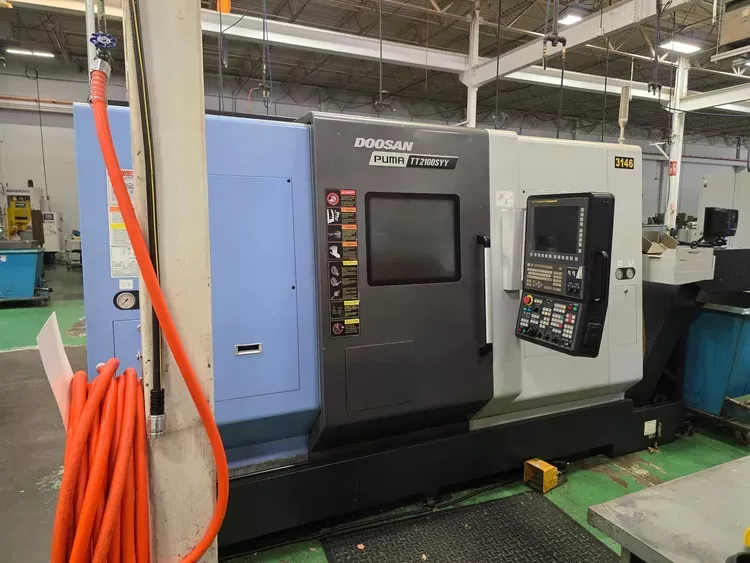

Doosan FANUC OiTF CNC 5,000 RPM PUMA TT-2100SYY 4 Axis

X-axis travel: 6.5"
Y-axis travel: 3.93"
Z-axis travel: 27.5"
C-axis: full contouring
Control: FANUC OiTF CNC
Programming: DOOSAN EZ Guide i
Bar capacity: 2.625"
Chuck size: 8"
Spindle nose: A2-6
Spindle motor: 35 hp
Spindle speed: 5,000 RPM
Sub spindle: yes
Sub spindle chuck size: 8"
Sub spindle bar capacity: 2.56"
Sub spindle spindle nose: A2-6
Sub spindle spindle motor: 25 hp
Sub spindle spindle speed: 5,000 RPM
Sub spindle/W-axis travel: 28.7"
Turret 1 capacity: 12
Turret 1 type: BMT55
Live milling: yes
Live milling speed: 5,000 RPM
Live milling motor: 10 hp
Turret 2 capacity: 12
Turret 2 X-axis travel: 6.5"
Turret 2 Z-axis travel: 27.56"
Swing over bed: 9.05"
Max cutting diameter: 9.05"
Distance between centers: 38.5"
Rapid traverse rate X-axis: 1,181 in/min
Rapid traverse rate Z-axis: 1,575 in/min
Dimensions: 93" x 153" (with conveyor 186") x 88.6"H
Weight: 20,940 lbs
Twin 12-position turrets upper and lower, 24-position indexing each turret with base mount tooling system
Y-axis on both turrets
Integral spindles: 2
Full contouring C-axes on both spindles
Mill/drill on upper and lower turrets
Parts catcher left and right
Programmable parts unloader
Parts conveyor
X-axis live holders: 2
Z-axis live holders: 2
Standard factory static tooling
DOOSAN tool load monitoring system
Air blast system for chuck cleaning
