Doosan Doosan Fanuc I Series (0i-MD) 3500 RPM GT 2600M Year: 2 Axis

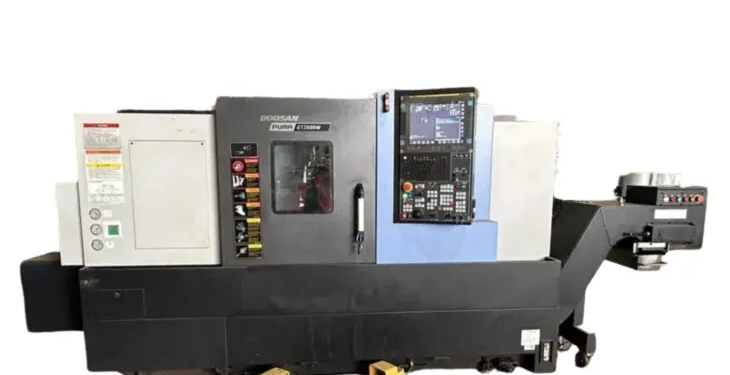

DOOSAN GT 2600M
Year: 2021

Swing 629.92 mm
Turning Diameter 408.94 mm
Turning Length 657.86 mm
Max Turning Diameter 481 mm
Max Turning Length 790 mm
Swing Over Bed 630 mm
Swing Over Saddle 460 mm
Bar Capacity 81.28 mm
Chuck Size 254 mm

Main Spindle Speed 3500 RPM
Main Spindle Power 22.4 kW
Main Spindle Torque 633 Nm
Main Spindle Capacity 220 kg
Shaft Work Capacity 520 kg

Tailstock Yes
Tailstock Taper MT5
Tailstock Quill Diameter 100 mm
Tailstock Quill Travel 100 mm
Tailstock Positioning Programmable

Live Tooling Yes
Live Tool Speed 5000 RPM
Live Tool Power 5.5 kW
Live Tool Torque 47.1 Nm

Turret Type BMT 55
Turret Capacity 12 stations
Tool Size Square 25 mm
Tool Size Round 40 mm Ø
Live Tool Collet Size ER25
Tooling System Eppinger Preci-Flex
C Axis Resolution 0.0010

Control Doosan Fanuc I Series (0i-MD)
Monitor Size 10.4” Color LCD
Control Features Rigid Tapping
Control Features Custom Macro B
Control Features Ethernet Interface
Control Features RS232 Interface
Control Features USB & PCMCIA Slot
Control Features Doosan Ezi Guide “I”
Control Features Graphical Turning Cycles
Control Features Graphical Milling Cycles
Control Features 3D Graphical Simulation
Control Features G & M Code Assistance

3 Jaw Hydraulic Power Chuck
Chuck Cleaning Air Blast
Eppinger Rotary Tool Holders with Preci-Flex Adapter Set
Coolant Supply Equipment
Foot Switches
Transformer
Chip and Coolant Shield with Interlock Door
Hand Tool Kit
Automatic Lubrication Equipment
Comprehensive Manuals
Safety Name Plates and Tags
Risk Assessment
Work Light
Chuck Open/Close Confirmation Switches
Chip Conveyor Side Discharge Hinged Belt
Auto Tool Setter Hydraulically Operated
Coolant Oil Skimmer
7 Bar High Pressure Coolant
Barfeed Interface
Programmable Tailstock
