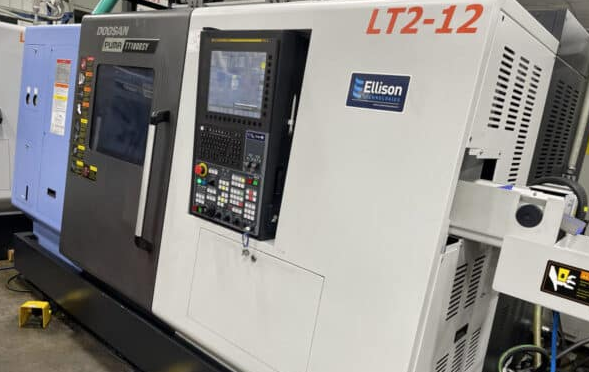

Doosan Doosan-Fanuc I Series Plus 5000 RPM PUMA TT1800SY 8 Axis

Ref : 2732260-3-W
Condition : Used
Manufacturer : Doosan
Controller : Doosan-Fanuc I Series Plus
Spindle Speed : 5000 RPM
Model : PUMA TT1800SY
Nb Of Axis : 8 Axis
Year(s) : 2022
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X1-Axis Travel Distance: 6.5"
X2-Axis Travel Distance: 7.5"
Y-Axis Travel Distance: 3.9"
Z1-Axis Travel Distance: 27.6"
Z2-Axis Travel Distance: 28.4"
A-Axis Travel Distance: 30.3"
X-Axis Rapid Traverse: 787 IPM
Z-Axis Rapid Traverse: 1575 IPM

Control: Doosan-Fanuc I Series Plus
Coolant: ChipBlaster GV3-120 High Pressure Coolant Unit
Bar Working Diameter: 2.6"

Swing Over Bed: 9.1"
Swing Over Saddle: 9.1"
Recommended Turning Diameter: 8.3"

Max Turning Diameter (Upper / Lower): 9.1" / 9.1"
Max Turning Length: 9.1"
Main Spindle Speed: 5000 RPM
Main Spindle Power: 29 HP
Main Spindle Torque: 154 ft-lbs
Sub Spindle Speed: 5000 RPM
Sub Spindle Power: 29 HP

Max Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 / 1.5 HP
Number of Tool Stations: 12
Turret Indexing Time: 0.15 sec
Chuck: 8″ 3-jaw chuck
Collet Chuck: Royal QG-65
Barfeeder Interface

Sub Spindle Part Ejector and Catcher
Main Spindle Part Catcher
Side Eject Chip Conveyor
Machine Dimensions (L x W x H): 154" x 89" x 82"
Machine Weight: 19,401 lbs
