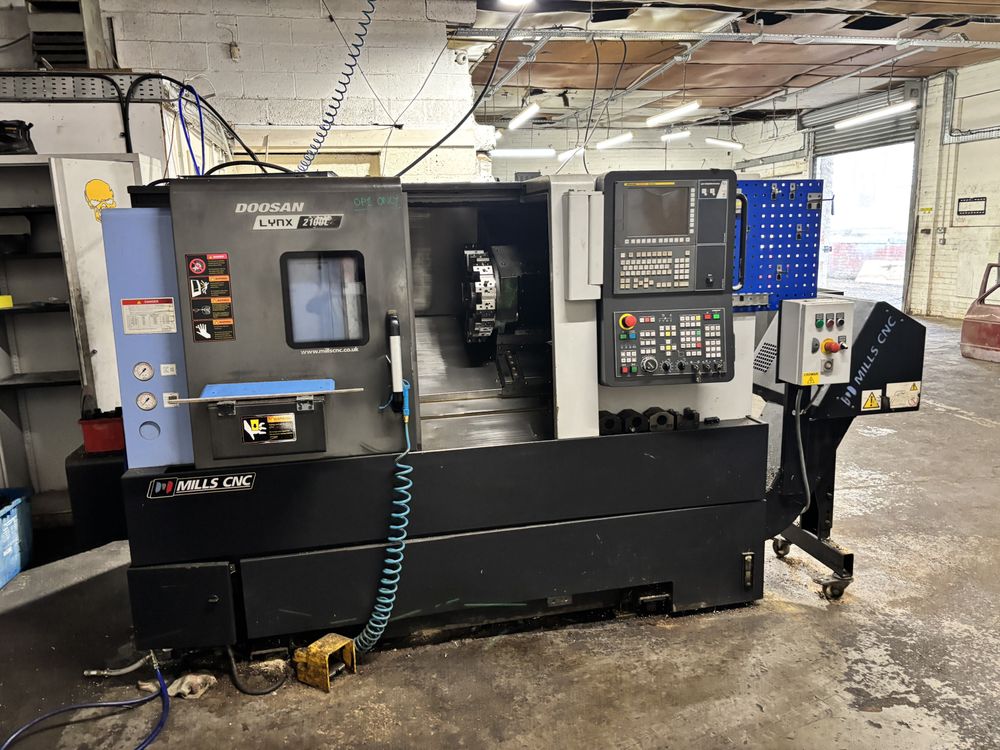

Doosan FANUC 0i Series 4500 RPM LYNX 2100LB 2 Axis

X axis travel: 205mm
Z axis travel: 560mm
Control: FANUC 0i Series
Bar capacity: 65mm

Swing: 600mm
Swing over carriage: 400mm
Spindle speed: 4500 RPM
Spindle motor power: 15/11 kW
Spindle nose: A2-6

Tailstock body travel: 360mm
Tailstock quill diameter: 65mm
Tailstock taper: MT #4

Rapid feedrates (X/Z): 30 / 36 m/min
Chuck size: 210mm (8")
Tool size: 20 x 20mm
Turret positions: 12 station
Machine dimensions: 2570 x 1595 x 1693mm
Machine weight: 2950 kg

3-jaw chuck
Coolant system
Interlocked guards
Low voltage light
Parts catcher
Swarf conveyor
Tailstock
Tool setter
