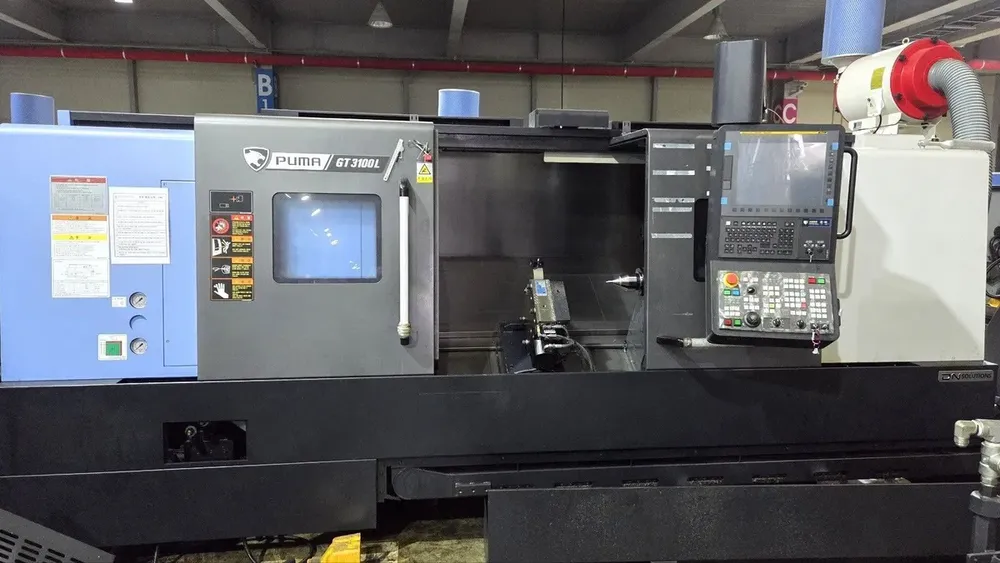

Doosan Doosan Fanuc Series I CNC control 2,800 RPM DN SOLUTIONS PUMA GT3100L 2 Axis

X-Axis Travel: 10.2"
Z-Axis Travel: 53.1"
Rapid Traverse X: 945 in/min
Rapid Traverse Z: 1,181 in/min
Tool presetter
Chip conveyor
15" color LCD monitor
Live center
Programmable tailstock
SMW SLU 3.1-ZS hydraulic steady rest 20 - 165 mm capacity
Chuck clamp confirmation
Tool load monitoring
128 pairs of tool offsets
Chip bucket
Swing over bed: 28.3"
Turning diameter: 18.9"
Machining length: 50.2"
Distance between centers: 53.8"
Spindle bore diameter: 4.4"
Bar capacity: 4"
Spindle speed: 2,800 RPM
Spindle motor power: 45 hp
Spindle nose: A2-11
Chuck size: 12"
Turret positions: 10
Tailstock quill diameter: 3.9"
Tailstock taper: MT5
Tailstock quill travel: 3.9"
Tailstock travel: 45.5"
2 axes
Machine weight: 15,212 lb
Manufacturing date: 06/2023
