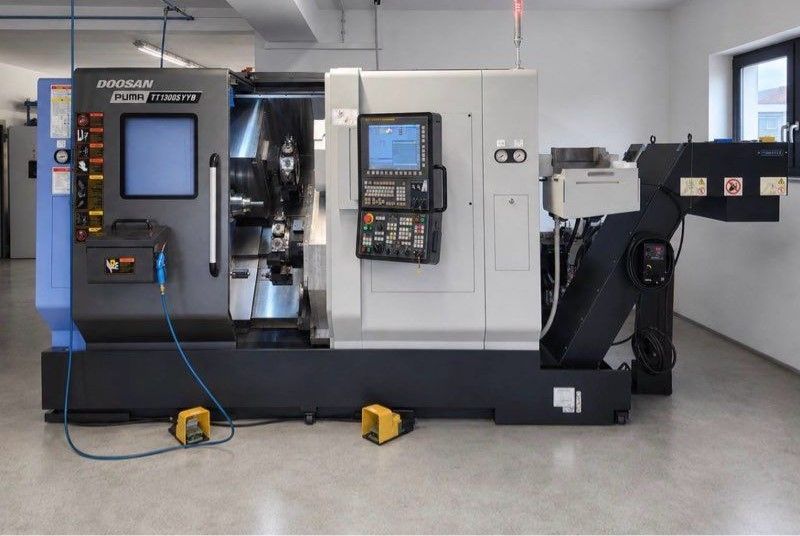

Doosan CNC Controller 6000 rpm Puma TT 1300 SYYB 3 Axis

Turning length max. : [mm] 120
Turning Diameter : [mm] 175 / 175

Races :
Axle X : [mm] 135
Axle Y : [mm] 80
Z axis : [mm] 530
Fast forward : (X/Y/Z) [m/min] 30 / 40

Primary brooch
Max. speed : [rpm] 6 000
Drive power: [kW] 15 / 11 / 5.5
Couple : [Nm] 116
Bar capacity : [mm] 51

Counter-spindle
Max. speed : [rpm] 6 000
Drive power : [kW] 11 / 7.5 / 5.5
Couple : [Nm] 93

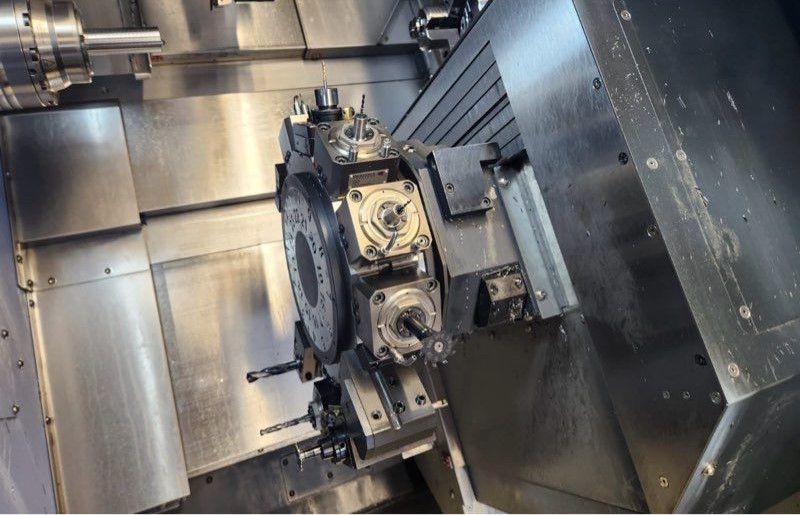

Number of turrets : 2
Tool stations : 12 + 12
Tool interface : BMT 45
Motorized tools
Speed of motorized tools 6 000

Equipment
Chip conveyor
High pressure pumps 30 bar
Mandrin 3 jaws [mm] Samchully x 2
Oil mist vacuum cleaner
Interface for bar refueller
Recovery of parts
Parts ejector
High pressure pumps Brinkmann 30 bar with filter 5 μm
Various tool holder 12 standard clamping tool holders
