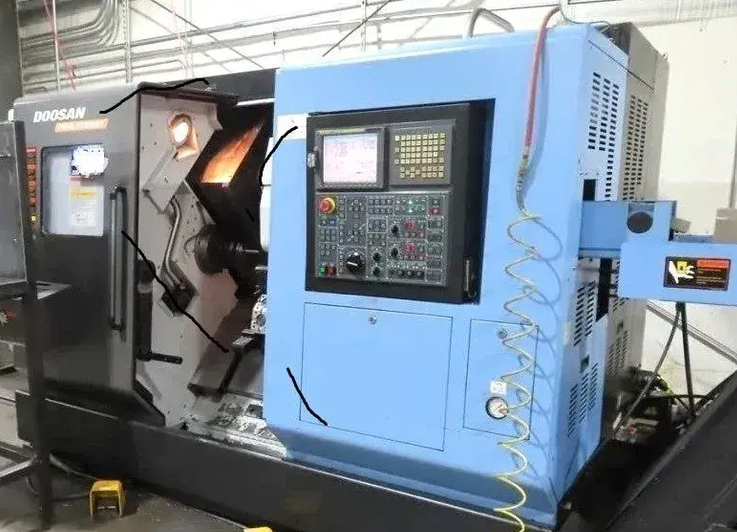

Doosan FANUC CNC control 6000 RPM TT1500SY 7 Axis

Rapid traverse X: 787 IPM
Rapid traverse Z: 945 IPM
Rapid traverse Y: 295 IPM
X1 axis travel: 6.5 in
Z1 axis travel: 18.5 in
X2 axis travel: 7.48 in
Z2 axis travel: 19.29 in
Y axis travel: 4 in (±2.0 in)
C axis: 360° (0.001°)
7 axes
2 C-axes
Y-axis
Bar feeder
Loaded with tooling
2 ATS collet chucks
Bar capacity: 2.0 in
Swing over bed: 23.62 in
Maximum turning diameter: 9.05 in
Maximum turning length: 20.1 in
Main spindle bore: 2.0 in
Sub spindle bore: 1.77 in
Main spindle nose: A2-5
Sub spindle nose: A2-5
Main spindle speed: 60–6000 RPM
Sub spindle speed: 60–6000 RPM
Main spindle power: 20 HP
Sub spindle power: 20 HP
Sub spindle
Live tool speed: 50–5000 RPM
Live tool power: 5 HP
6 in chuck
Upper turret: 12 stations
Lower turret: 12 stations
Live tooling on both turrets
Turret indexing time: 1 second
Power: 53 kVA
Electrical: 220 V / 3 Phase
Overall dimensions: 120 × 67 × 72 in
Overall dimensions: 136 × 67 × 72 in (with chip conveyor)
Weight: 11,500 lb
