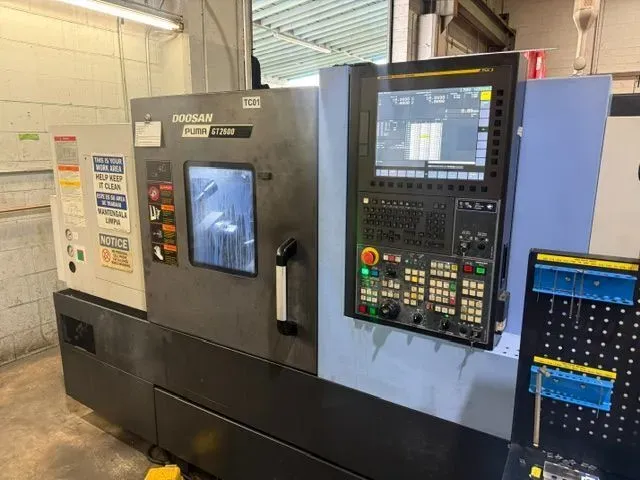

Doosan FANUC Series I Plus CNC Color Control 3500 RPM GT-2600 2 Axis

X Axis Travel: 10.4"
Z Axis Travel: 26.8"
Rapid Traverse X: 945 in/min
Rapid Traverse Z: 1,181 in/min
2 Axes
FANUC Series I Plus CNC Color Control
Tool Presetter
Chip Conveyor
Programmable Tailstock
Swing Over Bed: 24.8"
Turning Length: 25.9"
Maximum Turning Diameter: 18.1"
Bar Capacity: 3"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-8
Spindle Bore: 3.6"
2 Gear Ranges
No Live Tooling
No Sub Spindle
10" 3-Jaw Hydraulic Chuck
10-Station Turret
Hydraulic Chuck Clamp Confirmation
Tailstock Quill Diameter: 3.9"
Tailstock Quill Taper: MT4
Tailstock Quill Travel: 3.9"
Tailstock Travel: 26"
Signal Tower
Machine Dimensions: 129" × 65" × 68"
