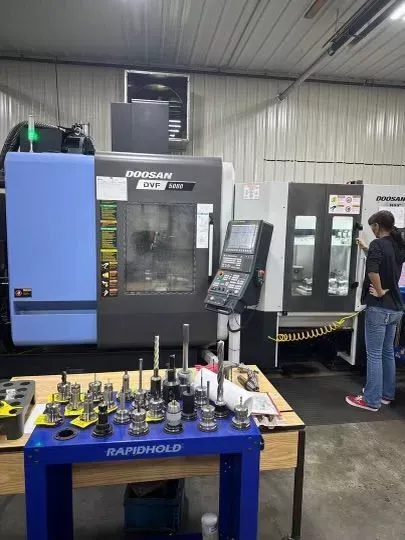

Doosan DVF 5000 5 Axis

X-Axis Travel 24.6"
Y-Axis Travel 17.7"
Z-Axis Travel 15.7"
B-Axis Travel -30° to +120°
C-Axis Travel 360°
CNC Control FANUC 31IM B5 5-Axis Color Contouring
Number of Tables / Pallets 12
Table Size 9.8" × 9.8"
Weight on Table 286 lb
Main Spindle Horsepower 30 hp
Main Spindle Speed 18,000 RPM
Main Spindle Taper 40
Max Workpiece Diameter x Height 11.8" × 13.8"
Rapid Traverse Rate X 1,575 in/min
Rapid Traverse Rate Y 1,575 in/min
Rapid Traverse Rate Z 1,575 in/min
Automatic Tool Changer Capacity 129
Tool Diameter 3.0" / 4.9"
Tool Length 11.8"
Tool Weight 17.6 lb
Machine Weight 16,534 lb
Auto Power Off
Tool Load Monitoring
Big Plus Spindle
High Speed Skip Function
3D Coordinate Conversion
12 Position Automatic Workpiece Changer
LNS Super Fine Compact Left-Hand Chip Conveyor
Renishaw RMP600 Spindle Probe
Renishaw RTS TTP Tool Setter
Chip Blaster Modular 1,000 PSI, 2–10 GPM Coolant System
100-Gallon Tank with Dual 5-Micron Bag Filters
LNS FOX Mist Collector WS2-700 3-Stage Filtration
BK Mikro Broken Tool Detection System
CAMPLETE TruePath Software Package
Makro-Grip Stamping Unit with High-End Jaws
Rego-Fix PowrGrip Clamping Unit
Lang Plates
Vises
Mounting Bore Covers and Quick-Point Plates
Profilo and Makro-Grip Accessories
