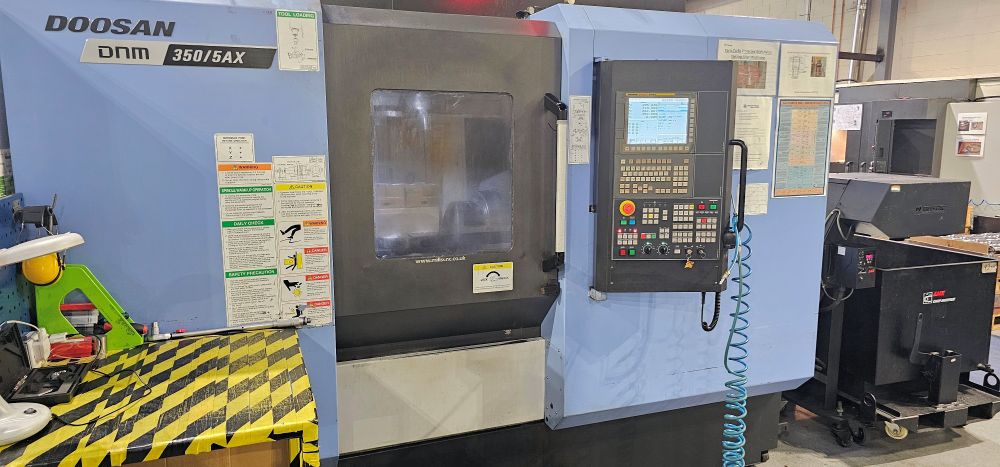

Doosan DNM350-5AX 5 Axis

X-axis travel: 600 mm
Y-axis travel: 655 mm
Z-axis travel: 500 mm
Rapid traverse X/Y/Z: 36 / 36 / 30 m/min
A-axis tilt range: +30° to -120°
C-axis rotation range: 360°
C-axis indexing resolution: 0.001°
Control: FANUC i Series CNC
5-axis simultaneous machining
Coolant system
Through-spindle coolant
Interlocked guards
Low-voltage work light
Remote handwheel
Spindle speed: 12,000 rpm
Spindle motor power: 18.5 / 11 kW
Spindle taper: BT40
Maximum cutting feedrate: 15,000 mm/min
Table diameter: 350 mm
Table rotational speed: 30 rpm
Maximum workpiece weight: 250 kg
Minimum distance spindle to table: 50 mm
Maximum distance spindle to table: 550 mm
Tool magazine capacity: 30 stations
Maximum tool diameter: 76 mm
Maximum tool diameter with adjacent pockets empty: 125 mm
Maximum tool length: 270 mm
Maximum tool weight: 8 kg
Tool change time (chip-to-chip): 3.7 s
Machine dimensions: 3,209 × 3,150 × 3,190 mm
Machine weight: 8,500 kg
