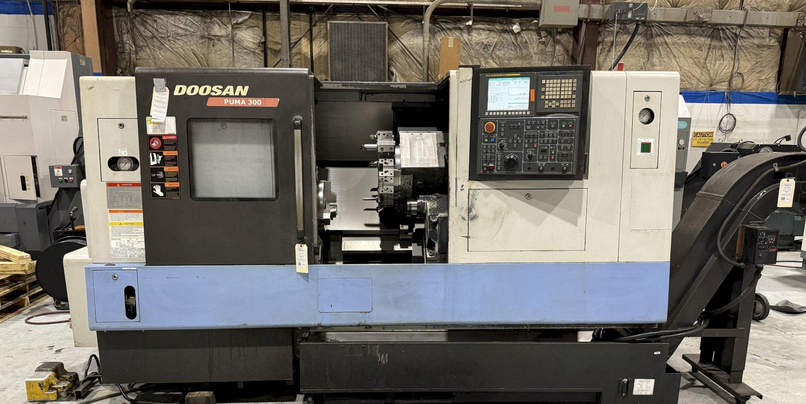

Doosan Fanuc 0i-TD 2800 rpm PUMA 300C 3 Axis

DOOSAN PUMA 300C
2011

CNC control: yes
Control type: Fanuc 0i-TD
Axes: 2
Swing: 23.23"
Turning diameter: 17.72"
Center distance: 24.8"
Chuck size: 12"
Bar capacity: 4"
X-axis travel: 14.17"
Z-axis travel: 28.34"
Rapid traverse (X/Z): 630/787 ipm
Spindle nose: A2-11
Spindle speed: 2800 rpm
Main motor: 30 hp
Turret capacity: 12
Tailstock: yes
Live tooling: no
Y-axis: no
Sub spindle: no
Machine dimensions: 148" x 70" x 75"
Machine weight: 12,700 lbs
Fanuc 0i-TD CNC control
Chip conveyor
Coolant tank and pump
Automatic hydraulic tool presetter
Programmable tailstock
EZ Guide i (Manual Guide i)
Bar feeder interface
64 tool offset pairs
Parts program storage 400/each
8 pairs work coordinate system
Doosan tool load monitoring
Cooljet interface
Embedded Ethernet
