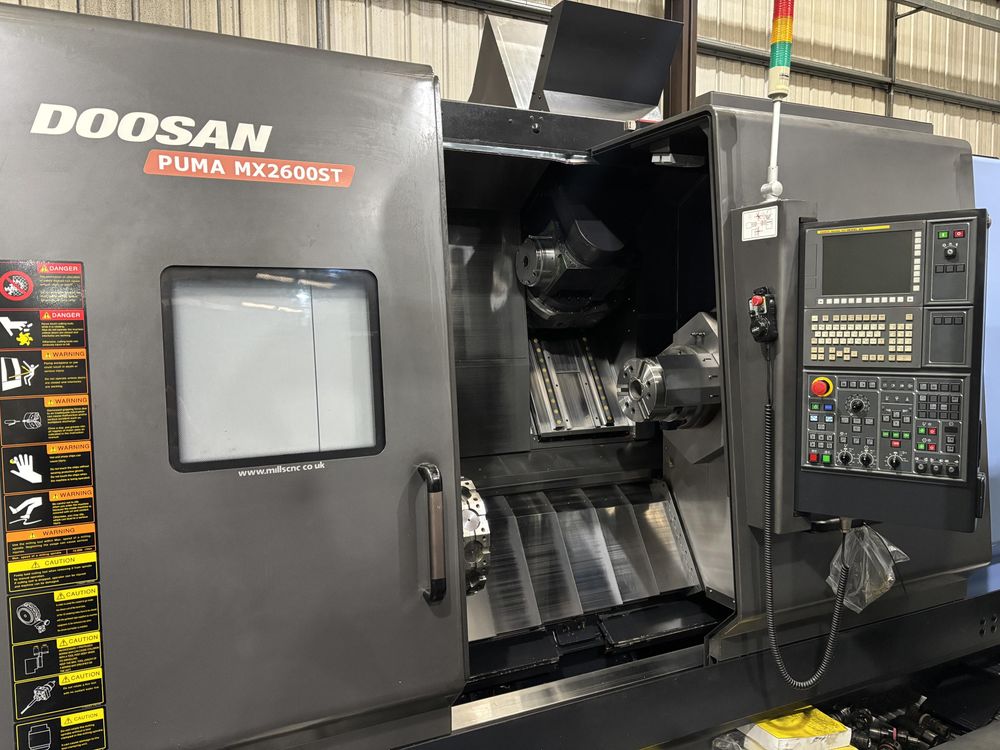

Doosan FANUC 31i-Model B5 4000rpm PUMA MX2600ST 7 Axis

X axis travel: 630mm
X2 axis travel: 220mm
Y axis travel: ±115mm
Z axis travel: 1585mm
Z2 axis travel: 1515mm
B axis: ±120°
C axis: 0.001°
Sub spindle C axis: 0.001°

Sub spindle stroke (A axis): 1550mm
Control: FANUC 31i-Model B5
Bar capacity: 76mm
Swing: 1000mm
Standard cutting diameter: 255mm
Maximum cutting diameter: 760mm
Maximum cutting length: 1540mm
Spindle nose: A2-8
Spindle speed: 4000rpm
Sub spindle nose: A2-8
Sub spindle speed: 4000rpm
Milling speed: 12000rpm
Chuck size: 250mm (10")
Tool size: CAPTO C6
Tool change capacity: 40 station

Features / Equipment
3 jaw chuck
B axis
C axis and milling
C axis on sub spindle
Coolant
Interlocked guards
Low voltage light
Lower turret
Remote hand wheel
Sub spindle
Swarf conveyor
Through spindle coolant
Tool setter
Y axis
