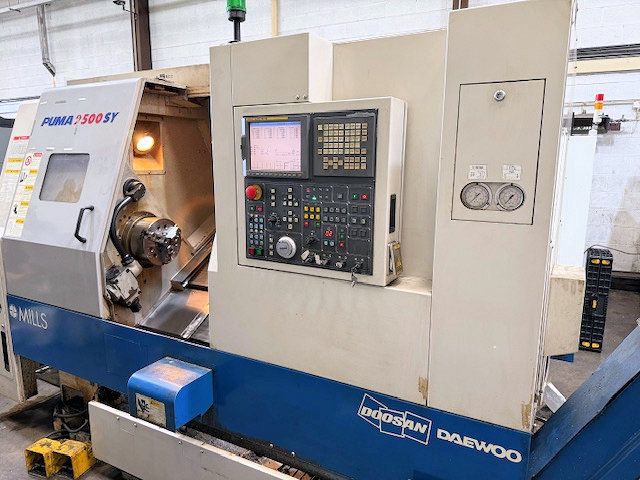

Doosan Fanuc 18i-TB 6000 rpm Puma 2500SY 4 Axis

3 jaw chuck
C axis & milling
C axis on sub spindle
Coolant
Interlocked guards
Low volt light
Parts catcher
Parts conveyor
Sub spindle
Tool setter
Tooling
Y-axis
Bar capacity: 76mm
Boring bar holder diameter: 40mm
C axis: 0.001 degrees
Control: Fanuc 18i-TB
Maximum cutting diameter: 330mm
Maximum cutting length: 580mm
Milling motor power: 5.5 kW
Milling RPM: 5000 rpm
Rapid feedrates XYZB: 20 x 7.5 x 24 x 20 m/min
Spindle motor power: 15/22 kW
Spindle nose: A2-8
Spindle speed: 3500 rpm
Sub spindle B axis movement: 580mm
Sub spindle bar capacity: 35mm
Sub spindle C axis: 0.001 degree
Sub spindle motor: 7.5/11 kW
Sub spindle speed: 6000 rpm
Swing: 600mm
Swing over the cross-slide: 550mm
Tool size: 25 x 25mm
Tooling configuration: BMT55
Turret positions: 12 station
X axis travel: 250mm
Y axis travel: +/-50mm
Z axis travel: 580mm
Machine dimensions: 3118 x 1705mm
Machine weight: 4900 kg
