Doosan Fanuc 18i-TB 9-Axis CNC Control 5000 rpm MX-2500ST 3 Axis

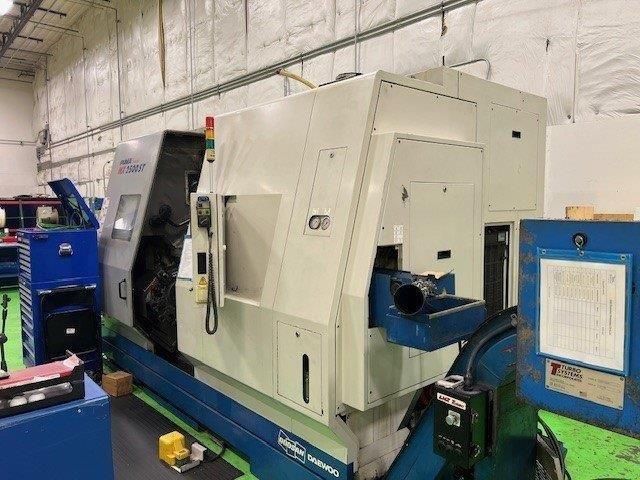

Doosan MX-2500ST
2006

Control: Fanuc 18i-TB/crt
Capacity: Swing 29.5 "
Maximum Machining Diameter 9.84 "
Maximum Machining Length 40.2 "

Main Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 5000 rpm
Spindle Bore 2.99 "
Spindle Nose A2-8
Main Motor (HP) 35 hp

Sub-Spindle: Maximum Spindle Speed 5000 rpm
Tool Changer: Number Of Positions 40 ATC
X-Axis Travel 21.9 "
Y-Axis Travel 6.3 "
Z-Axis Travel 43.1 "

Live Tooling: Maximum Speed 10000 rpm
C-Axis Indexing: Main Spindle 0.001 �

Main Chuck: Diameter 10 "
Hole Thru 2.6 "
Number of Jaws 3
Sub Chuck: Diameter 8 "

Equipped With:
Fanuc 18i-TB 9-Axis CNC Control
Pendulum Style B-Axis Head
Live Milling Capability on Upper Head
Y-Axis Capability on Upper Head
40 Position Automatic Tool Changer
Sub Spindle
10" 3 Jaw Hydraulic Chuck on Main Spindle
8" 3 Jaw Hydraulic Chuck on Subspindle
12 Station Lower Turret with All Locations Capable of Live
Automatic Tool Eye
Chip Conveyor
Parts Exit Conveyor System
Complete Coolant System with Tank & Pump
3 Color Machine Status Condition Lights
Card Interface
RS 232 Port Interface
All Available Manuals
All Available Tooling
