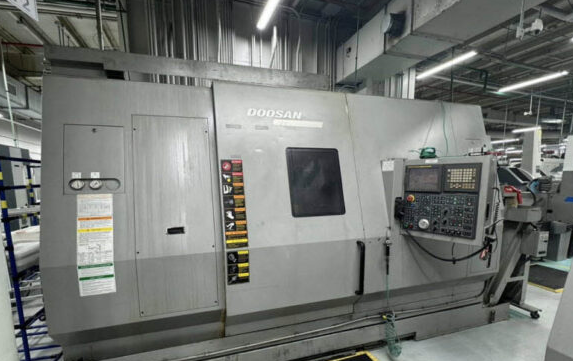

Doosan Fanuc 18i-TB Control 5,000 RPM Puma MX2000ST 9 Axis

X1 Axis Travel 21.85”
X2 Axis Travel 7.28”
Z1 Axis Travel 43.11”
Z2 Axis Travel 44.88”
Y Axis Travel 6.29” (±3.14”)
A-Axis Travel 41.92”
C1, C2 Axis Travel 360° (0.001°)
B-Axis Travel 240° (±120°)
B Axis Coupling Clamp 15°

Swing Over Bed 29.52”
Swing Over Saddle 23.62”
Recommended Turning Diameter 8.26”
Max Turning Diameter 21.65”
Max Working Length 40.15”
Bar Working Diameter 2.55”
Main Spindle Chuck Size 8”
Main Spindle Nose A2-6
Main Spindle Diameter 4.33”
Main Spindle Through Hole 2.99”
Bore of Draw Tube 2.59”
Main Spindle Motor 29.5 HP / 20 HP
Max Main Spindle Speed 5,000 RPM
Max Spindle Indexing (C Axis) 0.001°
Milling Spindle Taper Capto C6
Milling Spindle Diameter 2.75”
Milling Spindle Motor 20 HP / 15 HP
Max Milling Spindle Speed 10,000 RPM
Index of Milling Spindle 360° in 30° increments
Tool Changer Capacity 24
Tool Changer Arm Swing Arm
Tool Change Time 1.5 sec
Lower Tool Post Number of Tool Stations 12
Boring Bar Size 1.57”
Rotary Tool Speed 4,000 RPM
Rotary Tool Motor 7.5 HP
Slant Angle 45°
Bed (Z1 Axis) 21.25”
Saddle (X1 Axis) 11.22”
Saddle (X2 Axis) 9.44”
Right Spindle Base 17.51”
Machine Weight 12,500 LBS
Machine Floor Dimensions 177.95” x 98.22” x 102.36”
Chip Conveyor
Sub Spindle
B Axis
Y Axis
C Axis
Live Tooling
Sub Turret with Milling
