Doosan FANUC 21i-T 1500 RPM Puma 400C 2 Axis

X axis travel 362mm
Z axis travel 1105mm
Rapid feedrates XZ: 16 x 20 m/min

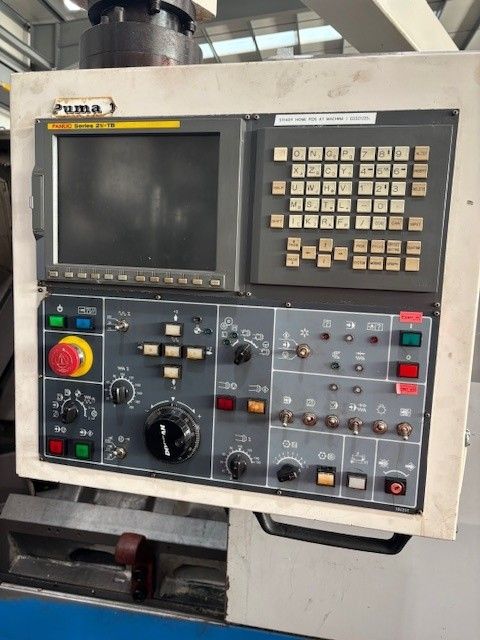

Control FANUC 21i-T
Bar capacity 165.5mm
Spindle bore 181mm
Spindle speed 1500 RPM
Spindle motor power 30/37 kW
Spindle nose A1-15
Swing 770mm
Swing over carriage 590mm
Maximum cutting diameter 550mm
Maximum cutting length 1024mm
Boring bar holder diameter 60mm
Chuck size 530mm (21")
Turret positions 10 Station
Tailstock quill diameter 120mm
Tailstock taper MT #6
Machine dimensions 4582 x 2400 x 2292mm
Machine weight 10,050 kg
Equipped with 3-jaw chuck
Equipped with coolant
Equipped with interlocked guards
Equipped with low volt light
Equipped with swarf conveyor
Equipped with tailstock
Equipped with tool setter
