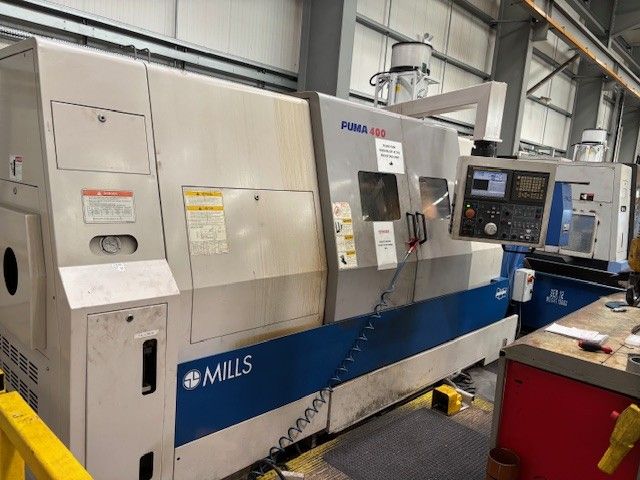

Doosan FANUC 21i-TB 2000 rpm Puma 400B 2 Axis

Ref : 2758508-3-GO

Condition : Used

Manufacturer : Doosan

Controller : FANUC 21i-TB

Spindle Speed : 2000 rpm

Model : Puma 400B

Nb Of Axis : 2 Axis

Year(s) : 2007

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Feedrates XZ: 16 x 20 m/minute
Control: FANUC 21i-TB
Coolant
Interlocked guards
Low Volt Light
Manuals
Swarf Conveyor
Tailstock
Tool setter
Tooling
Bar Capacity: 117 mm
Maximum Cutting Diameter: 550 mm
Maximum Cutting Length: 1043 mm
Quill Diameter: 60 mm
Spindle Speed: 2000 rpm
Spindle Motor Power: 26 kW
Spindle Nose: A2-11
Tailstock Taper: MT #6
Turret Positions: 10 Station
X axis Travel: 362 mm
Z axis Travel: 1105 mm
Chuck Size: 450 mm (18")
Swing: 770 mm
Swing Over Carriage: 590 mm
Machine Dimensions: 4582 x 2440 x 2292 mm
Machine Weight: 9550 kg
