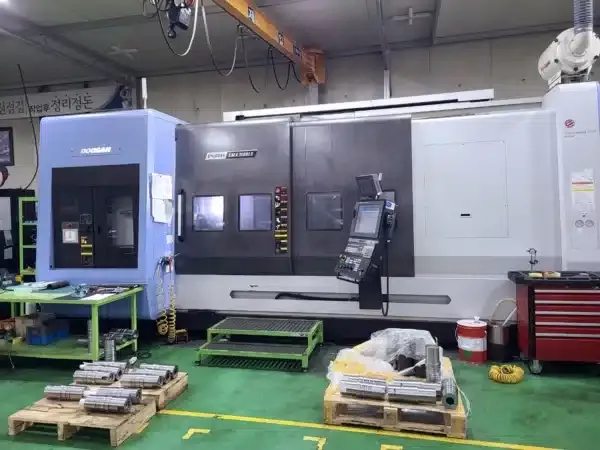

Doosan FANUC 31-B5 CNC 2,500 RPM PUMA SMX3100LS 6 Axis

X1-Axis Travel: 24.8″
Z1-Axis Travel: 101.8″
Y1-Axis Travel: 11.8″
C-Axis Indexing: 1 360°
W-Axis Travel Sub Spindle: 98.4″
B-Axis Head Indexing: 0.0001°

Rapid Traverse Rate X1: 1889.8 ipm
Rapid Traverse Rate Z1: 1181.1 ipm
Rapid Traverse Rate Y1: 1417.3 ipm
Swing Over Bed: 26″
Chuck Size 1: 15″
Bar Capacity 1: 4″
Spindle Speeds 1: 2,500 RPM
Chuck Size 2: 12″
Bar Capacity 2: 3.6″
Spindle Speeds 2: 4,000 RPM
Turning Diameter: 26″
Turning Length: 100″

B-Axis Milling Spindle Taper: Capto C6
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Horsepower: 35 hp

ATC for Milling Spindle: 80
Tool Length: 17.7″
Tool Weight: 26.5 lb
Machine Weight: 45,195 lb
Dimensions: 252″ x 118.5″ x 112.2″
Control: FANUC 31-B5 CNC
Scales for X/Y/Z
SMW Steady Rest 3.93″ to 16.1″
Chip Conveyor
X Axis Ballscrew Cooling
Absolute Pulse Coder
Automatic Electric Tool Setter
Program Storage 1280M
Embedded Ethernet
AICC II 600 Blocks
8 Pairs Work Coordinates
ATC Operating Panel with Touch Camera
