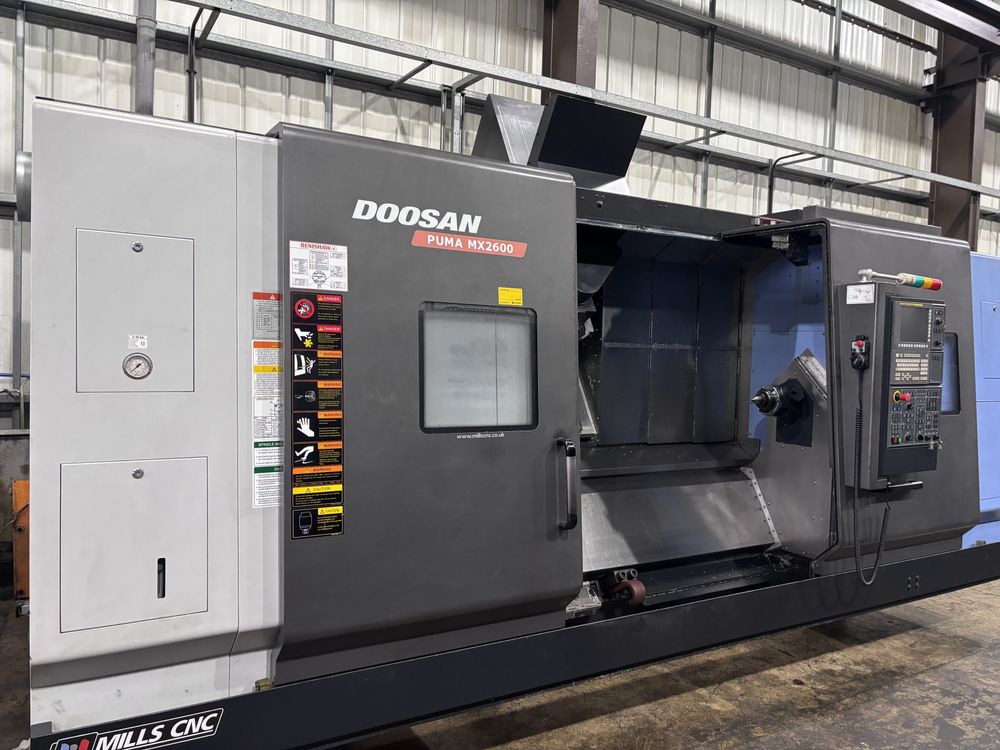

Doosan FANUC 31i 4000 rpm Puma MX2600 5 Axis

Rapid feedrates (X, Y, Z): 36 x 36 x 26 m/min
X axis travel: 630 mm
Y axis travel: ±115 mm
Z axis travel: 1585 mm
C axis: 0.001°
B axis: 0.001°

Control: FANUC 31i
Tool setter
Coolant
Bar capacity: 76 mm
Swing: 1000 mm
Swing over cross-slide: 700 mm
Standard cutting diameter: 255 mm
Maximum cutting diameter: 760 mm
Maximum cutting length: 1540 mm
Spindle speed: 4000 rpm
Spindle motor power: 26/22 kW
Spindle nose: A2-8

Milling motor power: 22/18.5 kW
Milling RPM: 12000 rpm
Chuck size: 10" (250 mm)

Tool change capacity: 40 station
Tooling configuration: CAPTO C6
Maximum tool diameter: 90 mm
Maximum tool diameter with empty adjacent pockets: 130 mm
Maximum tool length: 400 mm
Maximum tool weight: 10 kg
Tailstock taper: MT #5
Tailstock body travel: 1550 mm
Machine dimensions: 5125 x 2625 x 3025 mm
Machine weight: 13900 kg

Equipped With:
3 jaw chuck
C axis
Milling
Coolant
Interlocked guards
Low volt light
Swarf auger
Tailstock
Tool setter
Y-axis
