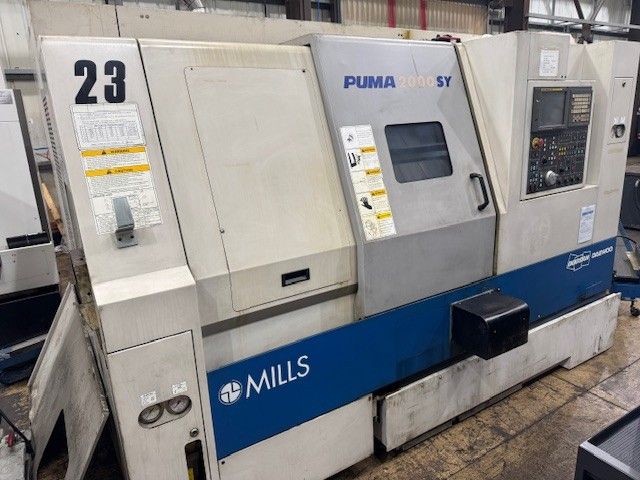

Doosan FANUC 31i-A 5000 rpm Puma 2000SY 3 Axis

3 jaw chuck
Barfeed
C axis & milling
Collet chuck
Coolant
Interlocked guards
Low volt light
Manuals
Parts catcher
Sub spindle
Tool setter
Tooling
Y-axis
B axis travel: 580mm
Bar capacity: 65mm
C axis: 0.001 degree
Control: FANUC 31i-A
Maximum cutting diameter: 330mm
Maximum cutting length: 505mm
Milling motor power: 5.5 kW
Milling RPM: 5000 rpm
Rapid feedrates XYZB: 20 x 24 x 7.5 x 20 m/min
Spindle motor power: 22 kW
Spindle speed: 3500 rpm
Sub spindle bore: 45mm
Sub spindle C axis: 0.001 degree
Sub spindle max speed: 6000 rpm
Sub spindle motor: 7.5 kW
Swing: 600mm
Swing over the cross-slide: 289mm
Tool size: 25mm
Turret positions: 12 station
X axis travel: 250mm
Y axis travel: +/-50mm
Z axis travel: 580mm
Machine dimensions: 2060 x 3185 x 1775 mm
Machine weight: 4850 kg
