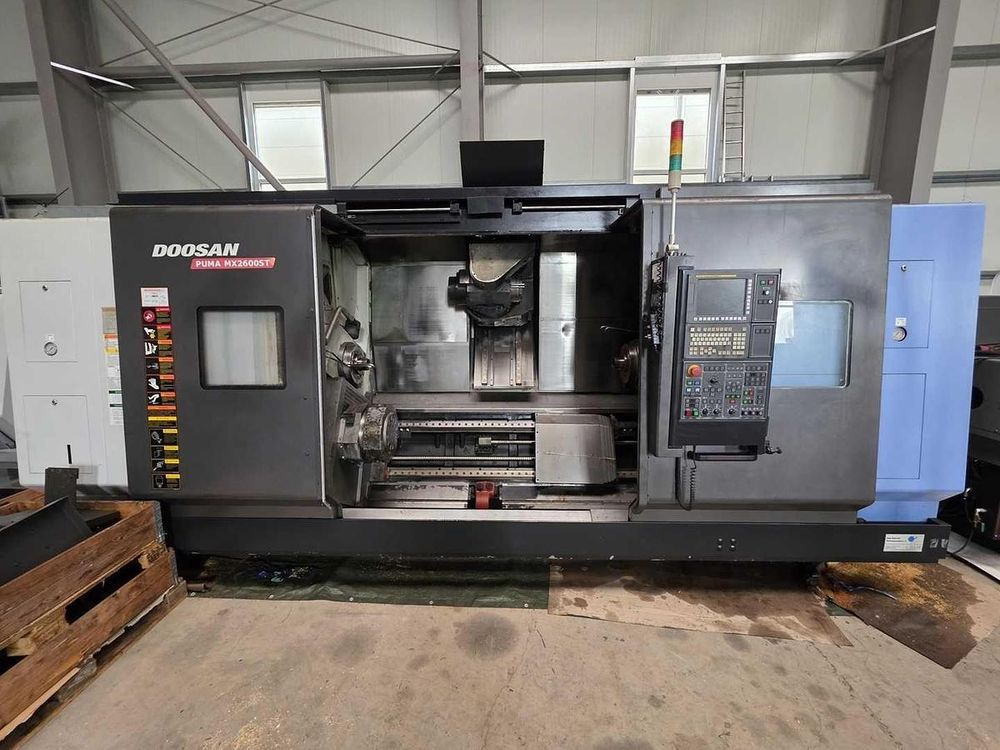

Doosan Fanuc 31i-A CNC Control 4,000 RPM PUMA MX 2600 ST 3 Axis

X axis travel: 630 mm / 220 mm
Y axis travel: 230 mm
Z axis travel: 1585 mm / 1515 mm
B axis
Fanuc 31i-A CNC Control
Manual Guide i
Automatic central lubrication
Contour milling with B axis
4-axis simultaneous machining
Internal coolant supply on counter spindle
Automatic tool inspection arm
Electronic tool breakage monitoring
2D pressure monitoring for main and counter spindle
Automatic shutdown after production end
Hinge belt chip conveyor
Advanced high-pressure coolant system
Paper band filter
Bar capacity: 76 mm
Turning diameter: 760 mm
Swing length: 1540 mm
Feed diameter: 254 mm
Turning diameter over bed: 1000 mm
Spindle bore: 86 mm
Maximum spindle speed: 4,000 RPM
Spindle nose: A2-8
Counter spindle
Milling spindle speed: 10,000 RPM
Drive power: 26/22 kW
Power turret: 12 stations
Tool magazine: 80 positions
Tool holder: BMT 65P
Capto tooling
Hydraulic hollow clamping device
Power chuck: 200 mm (2)
Radial AGW
Axial AGW
Total power requirement: 100 kVA
Control on hours: 85,381
Runtime hours: 47,684
Machine weight: approximately 15.5 tons
Machine dimensions: 6.1 × 2.7 × 3.0 m
