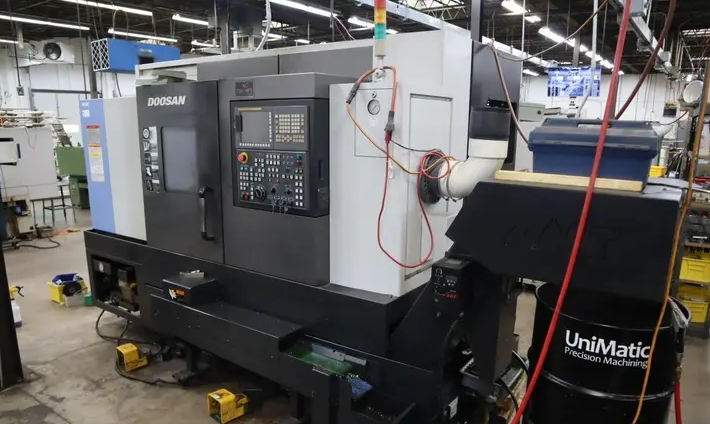

Doosan Fanuc 31i Model A CNC Control 4500 RPM PUMA 2100SY 3 Axis

Max Turning Diameter 16.0"
Max Turning Length 20.5"
Sub-Spindle Travel 23.2"
Turret Travels (X/Z) 10.2" x 23.2"
Hole Thru Spindle 3.0"
Rapids 1,181 IPM X/Z/B Axes
Rapids 393.7 IPM Y Axis
C-Axis Main and Sub-Spindles
Fanuc 31i Model A CNC Control
Y-Axis Programmable Turret
Main Bar Capacity 2.6"
Sub-Spindle Bar Capacity 2.45"
Main Spindle Speed 4500 RPM
Main Spindle Drive 25 HP
Sub-Spindle Speed 4500 RPM
Sub-Spindle Drive 10 HP
Live Tool Drive Motor 7 HP
Spindle Nose A2-6
Main Spindle Chuck Size 8"
Sub-Spindle Chuck Size 6"
12-Station Live Turret Milling Capable
3-Jaw Main Chuck Samchully MH-208 8"
3-Jaw Sub-Spindle Chuck Samchully MH-206 7"
2 Axial Driven Toolholders
2 Radial Driven Toolholders
3 Assorted Static VDI Toolholders
20 Bolt-On Static Toolholders
Auto Tool Presetter
Parts Catcher
Parts Conveyor
Chip Conveyor
Swarf Conveyor
High Pressure Coolant System
Complement of Static Boring Bars and Turret Tool Holders
3 Eppinger Radial Live Tools
RS232 Port
Compact Flash
Ethernet
Main Unit Weight 12,015 lbs
Main Unit Dimensions L130.3" x W73.3" x H85.2"
LNS Chip Conveyor Dimensions L124" x W24" x H56"
Coolant Pumps and Tank Dimensions L53" x W21" x H21"
Machine Dimensions on Floor L160" x W78" x H85"
