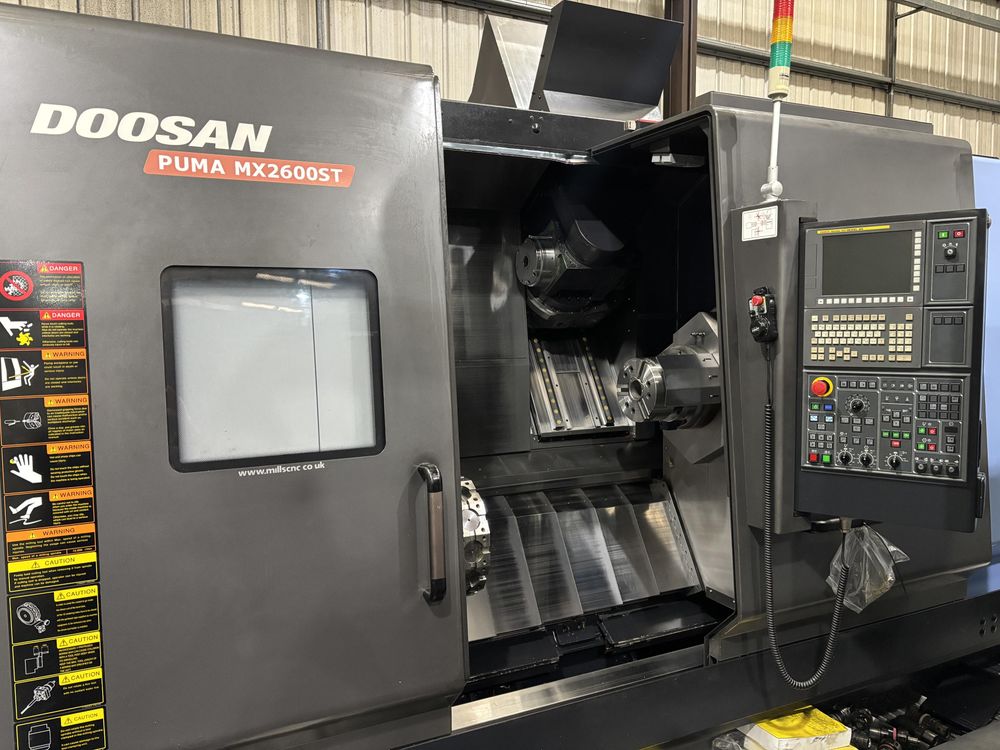

Doosan FANUC 31i-Model B5 4000rpm Puma MX2600ST 7 Axis

X axis travel 630mm
X2 axis travel 220mm
Y axis travel +/-115mm
Z axis travel 1585mm
Z2 axis travel 1515mm
B axis +/-120 degrees
C axis 0.001 degree

Sub Spindle C axis 0.001 degree
Control FANUC 31i-Model B5
Bar capacity 76mm
Maximum cutting diameter 760mm
Maximum cutting length 1540mm
Swing 1000mm
Spindle speed 4000rpm
Spindle nose A2-8
Sub spindle speed 4000rpm
Sub spindle nose A2-8
Sub spindle stroke 1550mm (A axis)
Milling RPM 12000rpm
Tool change capacity 40 station
Tool size CAPTO C6
3 Jaw Chuck 250mm (10")
Coolant
Interlocked guards
Low volt light
Lower turret
Remote hand wheel
Sub spindle
Swarf conveyor
Through spindle coolant
Tool setter
Y-axis
