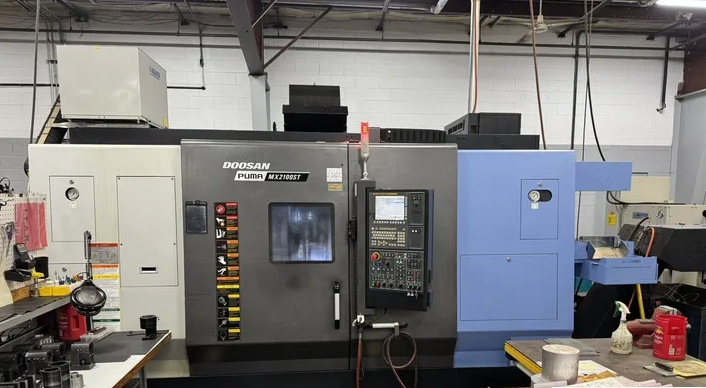

Doosan FANUC 31i Model B5, 5-Axis CNC (9 Axis Machine) 5000 rpm PUMA MX-2100ST 7 Axis

Number of Axes 5
Swing 29.5"
Machining Length 40.2"
Bar Capacity 2.6"
Tailstock No

Dimensions 153" L (212" W Chip Conv), 100" W, 110" H
Weight 26,400 lb
Swing Over Bed 29.5"
Swing Over Saddle 25.6"
Recommended Turning Diameter 8.3"
Max. Turning Diameter 21.3"
Max. Turning Length 40.2"
Chuck Size 8"

X1-Axis Travel 22.2"
Z1-Axis Travel 41.3"
Y-Axis Travel 6.7"
X2-Axis Travel 7.4"
Z2-Axis Travel 41.3"
A-Axis Travel 41.3"
B-Axis Rotation ±120°

Rapid Traverse X1 36 m/min (1417.3 ipm)
Rapid Traverse Z1 36 m/min (1417.3 ipm)
Rapid Traverse Y 26 m/min (1023.6 ipm)
Rapid Traverse X2 24 m/min (944.9 ipm)
Rapid Traverse Z2 36 m/min (1417.3 ipm)
Rapid Traverse A 30 m/min (1181.1 ipm)

Left Spindle Max Speed 5000 rpm
Left Spindle Nose A2-6
Left Spindle Through Hole 3.0"
Left Spindle Min Indexing Angle 0.0001°
Left Spindle Motor 30 HP

Right Spindle Max Speed 5000 rpm
Right Spindle Nose A2-6
Right Spindle Through Hole 3.0"
Right Spindle Min Indexing Angle -0.001°
Right Spindle Motor 30 HP

Milling Spindle Max Speed 12,000 rpm
Milling Spindle Min Indexing Angle 0.001°
Milling Spindle Motor 25 HP
Milling Tool Storage Capacity 40
Milling Tool Changer Arm SWING ARM

Lower Turret Number of Tool Stations 12
Lower Turret Max Rotary Tool Speed 5,000 rpm
Lower Turret Rotary Tool Motor 7.4 HP
Control FANUC 31i Model B5, 5-Axis CNC (9 Axis Machine)
Tool Setter
Parts Unloader & Conveyor
Chip Conveyor
Through Spindle Coolant with High Pressure ChipBlaster
ChipBlaster Mist Collector
10" and 8" Chucks and Collets for Main and Sub Spindles
All Available Tooling
Only 1,155 Cutting Hours
Inspect Under Power in Shop
