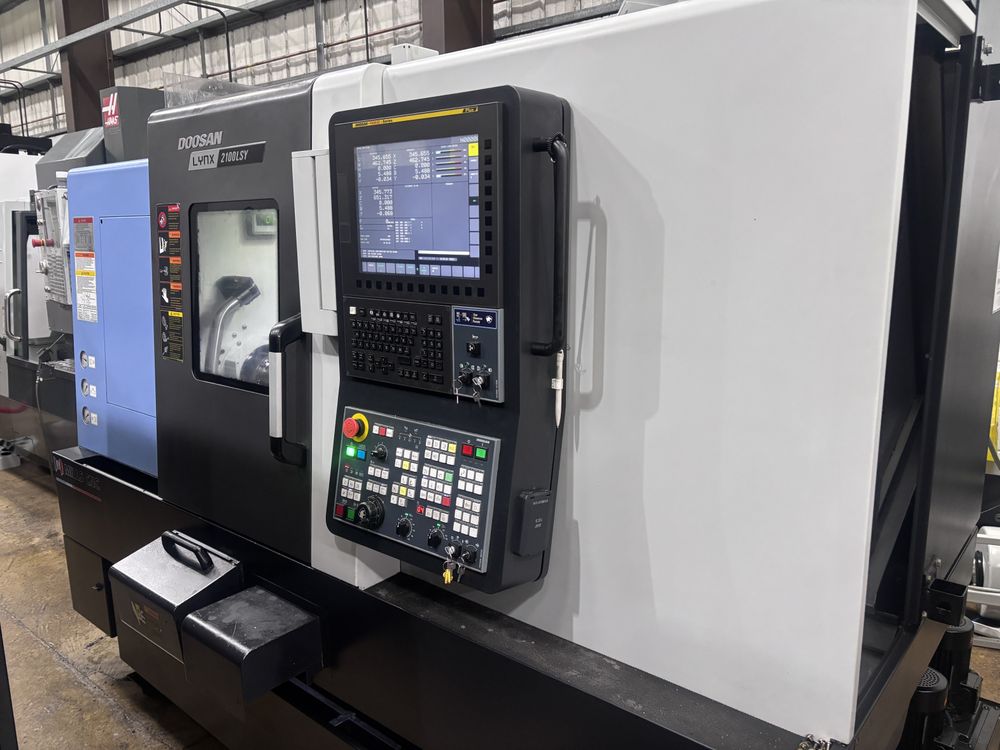

Doosan FANUC i 4500 rpm Lynx 2100LSYB 2 Axis

X axis travel 205 mm
Y axis travel ±52.5 mm
Z axis travel 560 mm
Rapid feedrates XYZ: 30 x 10 x 36 m/min
C axis 0.001 degree

Sub spindle C axis 0.001 degree
Control FANUC i
Tool setter
Coolant

Dust and fume extraction
Interlocked guards
Low volt light
Magazine barfeed
Manuals
Parts catcher
Parts conveyor
Sub spindle
Swarf conveyor
Tooling
USB port
Y-axis
Bar capacity 65 mm
Swing 600 mm
Swing over carriage 400 mm
Maximum cutting diameter 300 mm
Maximum cutting length 510 mm

Spindle speed 4500 rpm
Spindle motor power 12.5/10.5 kW
Spindle nose A2-6
Sub spindle bore 43 mm
Sub spindle chuck size 5"
Sub spindle max speed 6000 rpm
Sub spindle motor 8.3/7 kW

Milling motor power 7.79 kW
Milling RPM 6000 rpm
Chuck size 210 mm (8")
Tool size 20 x 20 mm

Turret positions 24 station (1/2 index option - positions 1-12 driven)
Machine dimensions 2880 x 1711 x 1921 mm
Machine weight 4200 kg
