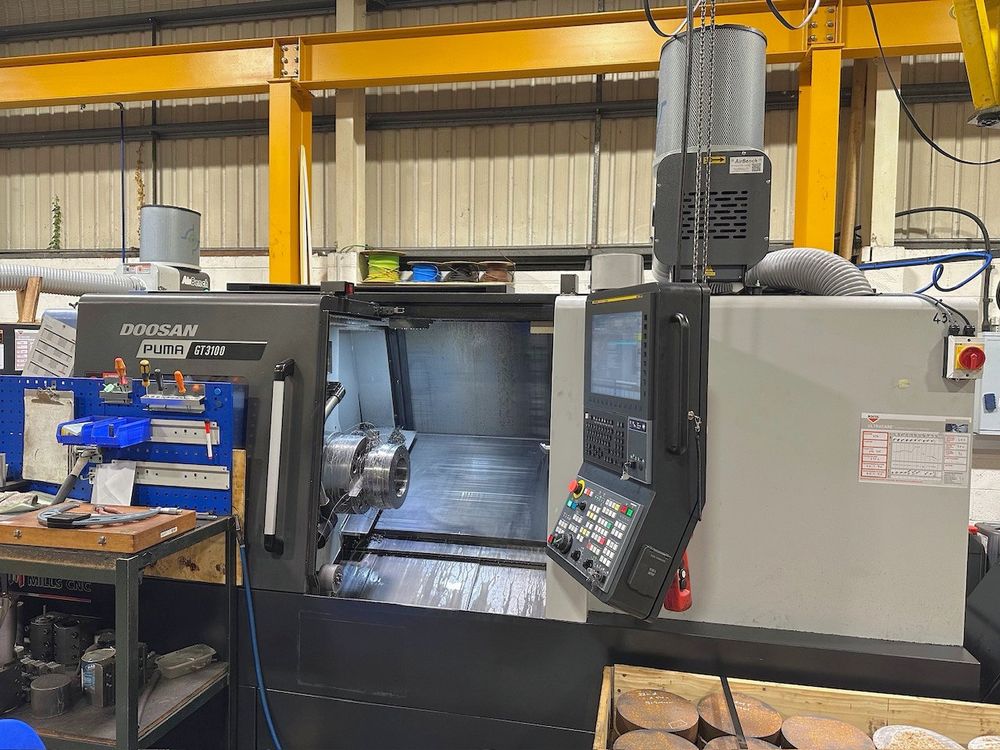

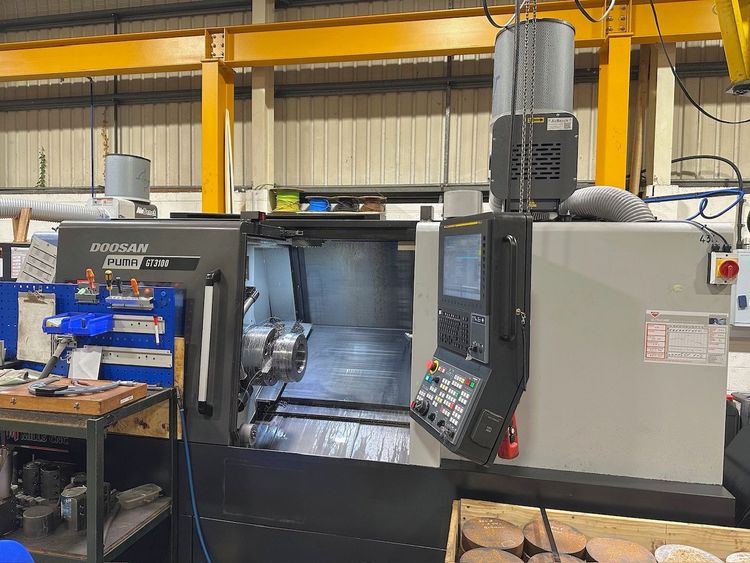

Doosan FANUC i PLUS 3500 rpm Puma GT3100 2 Axis

X axis travel 260 mm
Z axis travel 830 mm
Rapid feedrates XZ: 24 x 30 m/minute
Control FANUC i PLUS
Bar capacity 81 mm
Swing 720 mm
Swing over cross-slide 590 mm
Maximum cutting diameter 481 mm
Maximum cutting length 799 mm
Spindle speed 3500 rpm
Spindle motor power 35 / 26 kW
Spindle nose A2-8
Tailstock quill diameter 100 mm
Tailstock quill stroke 100 mm
Tailstock taper MT#5
Tool size 25 x 25 mm
Turret positions 12
Chuck size 250 mm (10")
Boring bar holder diameter 50 mm
Tailstock body travel 830 mm
Machine dimensions 5000 x 2100 x 1915 mm
Machine weight 5500 kg
3 jaw chuck
Coolant
Interlocked guards
Low volt light
Swarf conveyor
Tailstock
Tool setter
