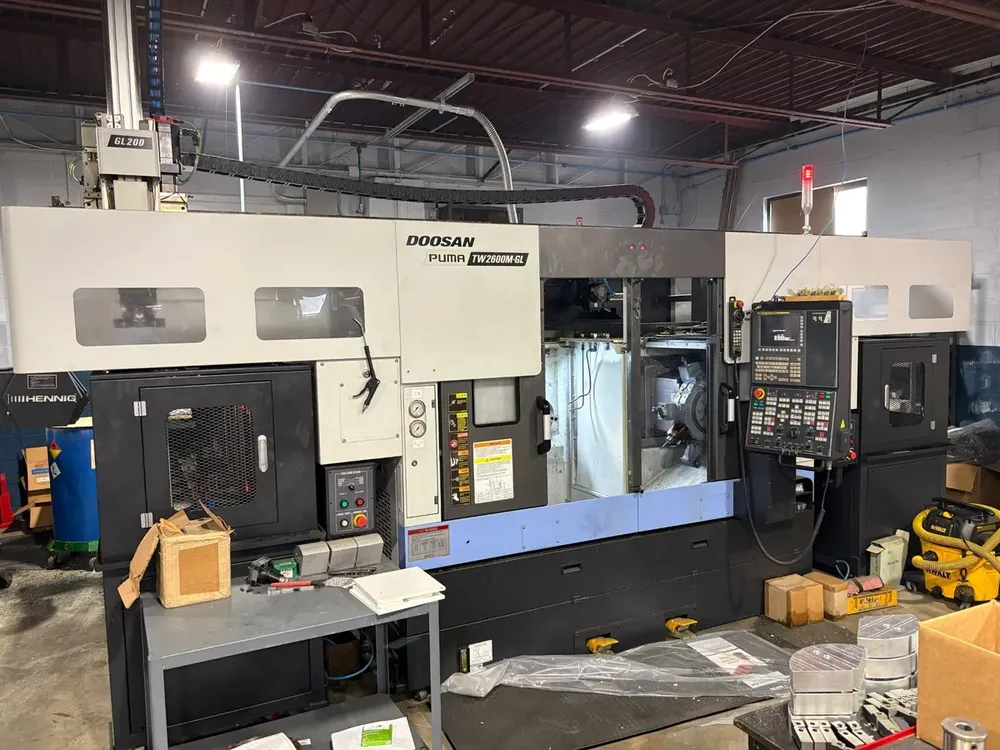

Doosan Fanuc i Plus CNC Control 3,500 RPM PUMA TW2600M-GL 6 Axis

X-Axis (Cross Travel: Turret) 7.5″
Z-Axis (Longitudinal Travel: Turret) 7.1″
X2-Axis (Lower Turret Cross Travel) 7.5″
Z2-Axis (Lower Turret Longitudinal Travel) 7.1″
Rapid Traverse (X-axis Upper Turret) 945 in/min
Rapid Traverse (Z-axis Upper Turret) 945 in/min
Rapid Traverse (X2-axis Lower Turret) 945 in/min
Rapid Traverse (Z2-axis Lower Turret) 945 in/min
6 Axis CNC Turning Center
Fanuc i Plus CNC Control
Max Swing Over Bed 17.71″
Max Turning Diameter 14.17″
Max Turning Length 6.69″
Center Distance 18.11″
Max Bar Capacity 2″
Spindle Through Hole 2.4″
Spindle Nose A2-6
Spindle Power 25 hp
Max Spindle Speed 3,500 RPM
Live Tooling Yes
Max Live Tooling Speed 5,000 RPM
Upper Turret Positions 10
Lower Turret Positions 10
Upper Turret Live Tooling Power 10 hp
Lower Turret Live Tooling Power 10 hp
2 × 8″ 3-Jaw Chucks
2 × 10-Position Turrets
Chip Conveyor
Coolant System
Gantry Loader System
Part Stackers
Machine Weight 16,097 lb
Dimensions 152.6″ × 106.9″ × 133.65″
