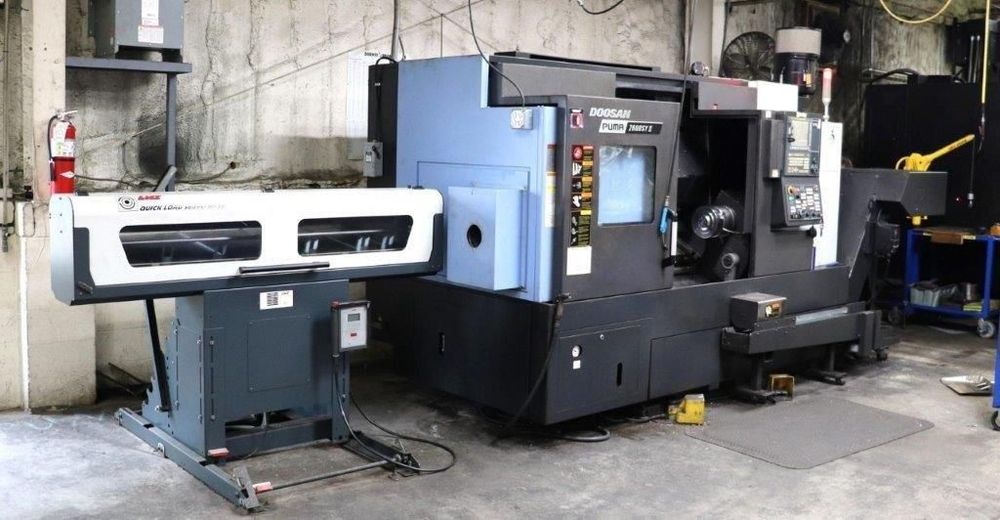

Doosan Fanuc i-Series 4000 rpm Puma 2600SY 2 Axis

Doosan Puma 2600SY
2017

Control: Fanuc i-Series
Capacity: Swing 30.7 "
Maximum Machining Diameter 14.8 "
Maximum Machining Length 29.9 "

Main Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 4000 rpm
Spindle Bore 3.38 "
Spindle Nose A2-8
Main Motor (HP) 30 hp

Sub-Spindle: Maximum Spindle Speed 6000 rpm
Hole 2.4 "
Motor 20 hp

Turret: Number Of Positions 12
X-Axis Travel 10.23 "
Z-Axis Travel 32.67 "

Live Tooling: Number of Live Positions -
Maximum Speed 5000 rpm
Motor 7.5 hp
C-Axis Indexing: Main Spindle 360,000 �

Main Chuck: Diameter 10 "
Hole Thru 3 "
Number of Jaws 3

Sub Chuck: Diameter 8 "
Number of Jaws 3

Equipped With:
Fanuc i-Series CNC Control
Y-Axis (+/- 4.13" Travel)
Sub-Spindle
Live Milling
Tool Presetter
Parts Catcher
Parts Conveyor
LNS Quick Load80 S2 Servo Bar Feeder
LNS Turbo Chip Conveyor
Oil Skimmer
Doosan Hi-PSI Coolant Pumps
Royal Filtermist FX575 Mist Collector
(2) Radial and (3) Axial Live Holders
