Doosan FANUC i Series 4500rpm PUMA GT2100 2 Axis

Ref : 2716629-3-GO

Condition : Used

Manufacturer : Doosan

Controller : FANUC i Series

Spindle Speed : 4500rpm

Model : PUMA GT2100

Nb Of Axis : 2 Axis

Year(s) : 2016

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

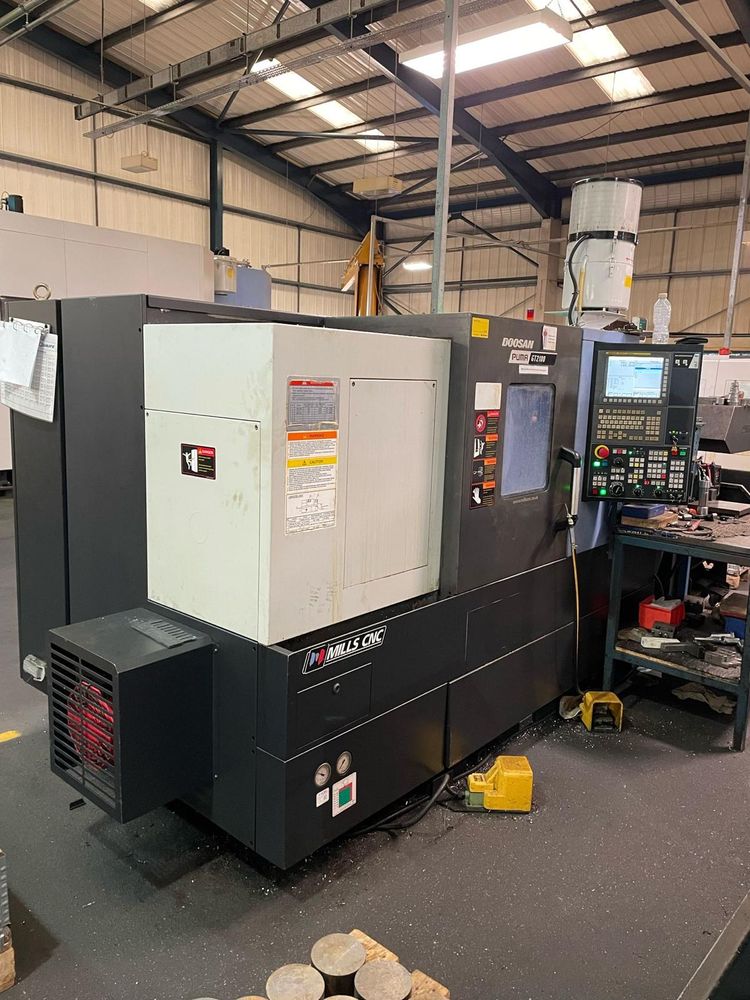

Doosan PUMA GT2100
2016

Bar Capacity65mm
Boring Bar Holder Diameter40mm
Chuck Size250mm (10")
ControlFANUC i Series

Machine Dimensions3895 x 1632 x 1759mm
Machine Weight3500kg
Maximum Cutting Diameter390mm
Maximum Cutting Length562mm
Rapid FeedratesXZ: 24 x 30m/minute

Spindle Motor Power18.5/15kW
Spindle NoseA2-6
Spindle Speed4500rpm
Swing600mm
Swing Over Carriage390mm

Tailstock Body Travel580mm
Tailstock Quill Diameter80mm
Tailstock Quill Stroke80mm
Tailstock TaperMT #4
Tool Size25 x 25mm
Turret Positions12 Station

X axis Travel230mm
Z axis Travel580mm
