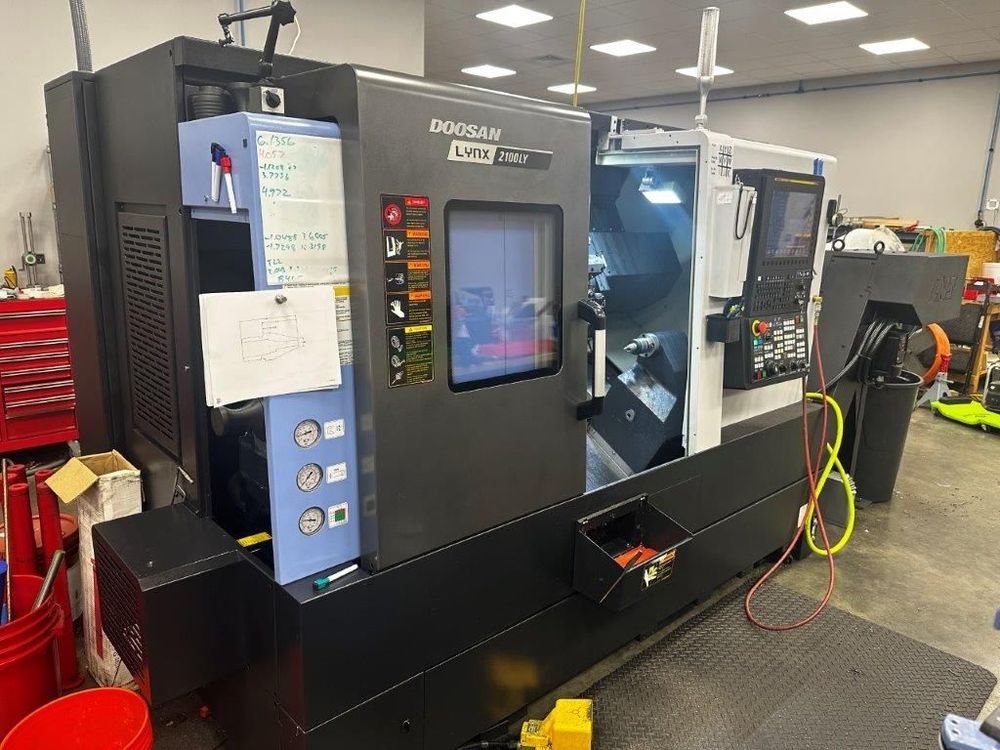

Doosan Fanuc i-Series CNC 6000 rpm LYNX 2100LYA 4 Axis

X-axis travel: 8.1 in
Z-axis travel: 22 in
Y-axis travel: ±2.5 in
C-axis spindle rotation
Control: Fanuc i-Series CNC
Live milling capability
Live drilling capability
Auto tool presetter
High pressure coolant system 165 PSI
Coolant tank and pump
Spindle speed: 0–6000 rpm
Spindle motor: 20 hp
Spindle bore: 2.4 in
Spindle nose: A2-5
Rotary tool speed: 6000 rpm
Rotary motor: 5 hp
Swing: 23.6 in
Maximum turning diameter: 11.8 in
Distance between centers: 22 in
Turret positions: 12
Hydraulic chuck: 6 in 3-jaw
Tailstock quill diameter: 2.6 in
Tailstock quill travel: 3.1 in
Tailstock taper: MT4
Chip conveyor
Programmable tailstock
Parts catcher
Spindle liners
Live radial holders (2)
Live axial holder (1)
