Doosan FANUC I SERIES CONTROL 4500 RPM DN SOLUTIONS LYNX 2100LYB 5 Axis

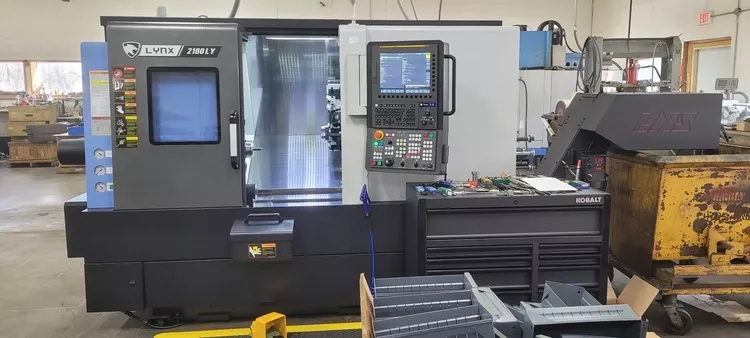

DN SOLUTIONS LYNX 2100LYB
Year:2024

Swing Over Bed: 23.6"
Turning Diameter: 11.8"
Turning Length: 20.1"
Distance Between Centers: 24"
Distance Between Spindles: 0
Chuck Size 1, 2: 8", Collet
Spindle Nose 1, 2: A2-6
Spindle Bore Diameter 1, 2: 3"
Bar Capacity 1, 2: 2.5"
Spindle Speeds 1, 2: 4500 RPM
Spindle Horsepower 1, 2: 20 HP
B - Axis Head Indexing: 0
B - Axis Milling Spindle Speed: 0
B - Axis Milling Spindle Taper: 0
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 0
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 8.1"
Z - Axis Travel Z1, Z2, Z3: 22"
Y - Axis Travel Y1, Y2, Y3: 4.1"
C - Axis Indexing 1, 2: .001 INDEXING
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2, X3: 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 393 IPM
Turret Tool Positions 1, 2, 3: 12/24
Turret Rotary Tool Speeds 1, 2, 3: 6000 RPM
Turret Rotary Tool Horse Power 1, 2, 3: 5.0 HP
Tailstock Quill Diameter: 2.6"
Tailstock Taper: MT #4
Tailstock Quill Travel: 3.1"
Programmable Tailstock: 0
Tailstock Travel: 22"
Machine Weight: 8,900 LBS.

FANUC I SERIES CONTROL
AUTO PARTS CATCHER
CHIP CONVEYOR
BARFEED INTERFACE
TOOL SETTER
(2) I.D. ROTARY HOLDERS
(2) O.D. ROTARY HOLDERS
12/24 POSITION TURRET
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
EZ OPERATION PACKAGE
CUSTOM MACRO
ALL MAZATROL SHOP, NO ONE WILL LEARN THE FANUC CONTROL **** 25 HOURS****
