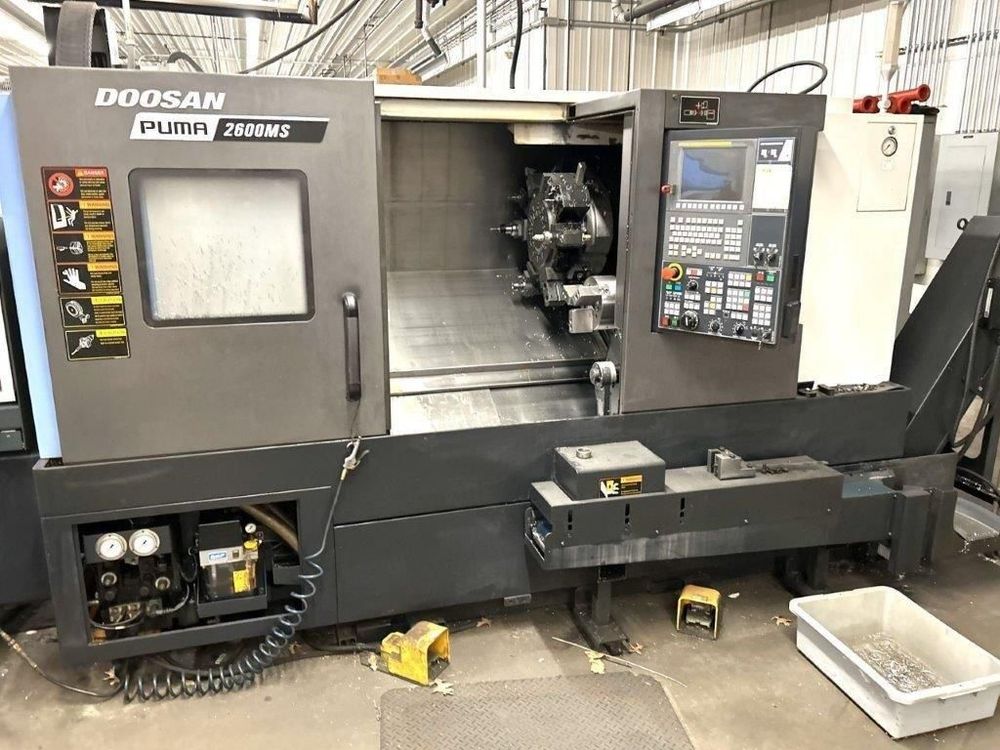

Doosan Fanuc i-Series/crt 3500 rpm Puma 2600MS 2 Axis

Doosan Puma 2600MS
2015

Control: Fanuc i-Series/crt
Capacity: Swing 30.7 "
Swing Over Cross Slide 24.8 "
Maximum Machining Diameter 14.8 "
Maximum Machining Length 29.9 "

Main Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 3500 rpm
Spindle Bore 3.4 "
Spindle Nose A2-8
Main Motor (HP) 40 hp

Sub-Spindle: Maximum Spindle Speed 4500 rpm
Motor 11 hp

Turret: Number Of Positions 24
X-Axis Travel 10.2 "
Z-Axis Travel 32.7 "

Live Tooling: Number of Live Positions -
Maximum Speed 5000 rpm
C-Axis Indexing: Main Spindle 360,000 �

Main Chuck: Diameter 10 "
Hole Thru 3 "
Number of Jaws 3

Sub Chuck: Diameter 8 "
Number of Jaws 3

Equipped With:
Fanuc i-Series CNC Control
LNS Quick Load Servo S3T Barfeed
Tool Presetter
Parts Catcher
Parts Conveyor
Hennig Chip Conveyor
10" 3-Jaw Hydraulic Chuck on Main Spindle
8" 3-Jaw Hydraulic Chuck on Sub Spindle
