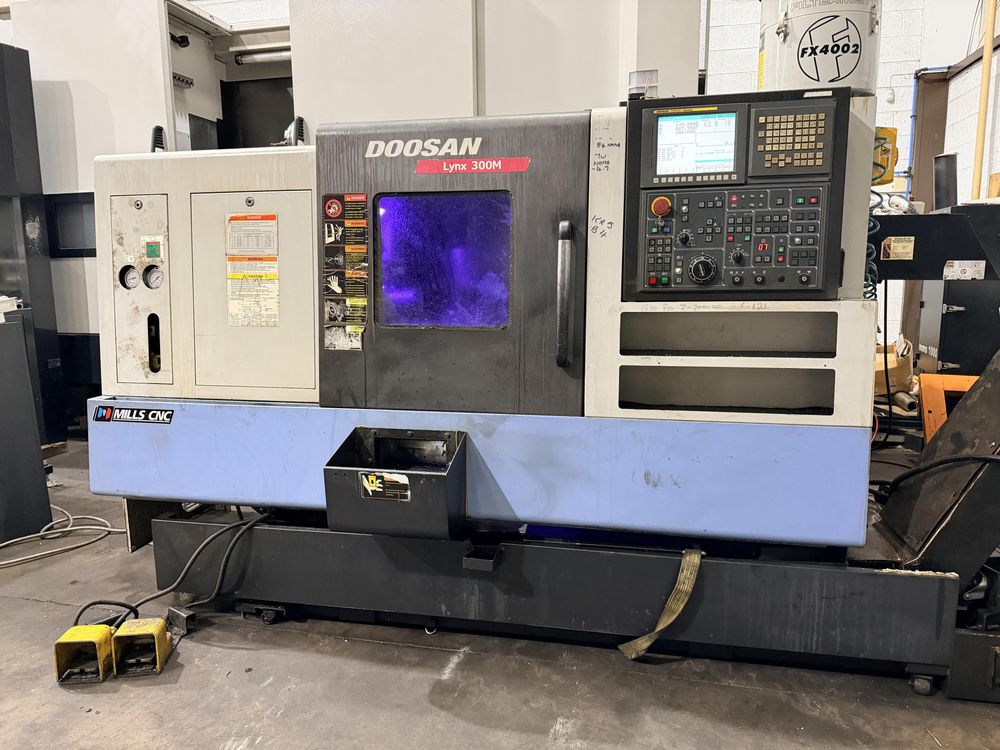

Doosan FANUC Oi with Ezi Guide 3500 rpm Lynx 300M 2 Axis

X-axis travel: 255 mm
Z-axis travel: 790 mm
Rapid feedrate X-axis: 24 m/min
Rapid feedrate Z-axis: 30 m/min
C-axis indexing resolution: 0.001°
Control: FANUC Oi with Ezi Guide
Bar capacity: 76 mm
Swing: 651 mm
Swing over cross-slide: 461 mm
Spindle motor power: 15 kW
Spindle speed: 3500 rpm
Spindle nose: A2-8
Milling motor power: 5.5 / 7.5 kW
Milling speed: 5000 rpm
Chuck size: 305 mm
Tool size: 25 mm
Tooling configuration: BMT55
Turret positions: 12 stations
Maximum cutting diameter: 370 mm
Maximum cutting length: 712 mm
Tailstock body travel: 775 mm
Tailstock quill diameter: 80 mm
Tailstock quill stroke: 120 mm
Tailstock taper: MT #4
Machine dimensions: 3035 x 1785 x 1715 mm
Machine weight: 4050 kg

Features / Options / Equipment
C-axis
Milling capability
Collet chuck
Coolant system
Interlocked guards
Low-voltage work light
Magazine barfeed
Parts catcher
Swarf conveyor
Tailstock
Tool setter
Tooling
Manuals
