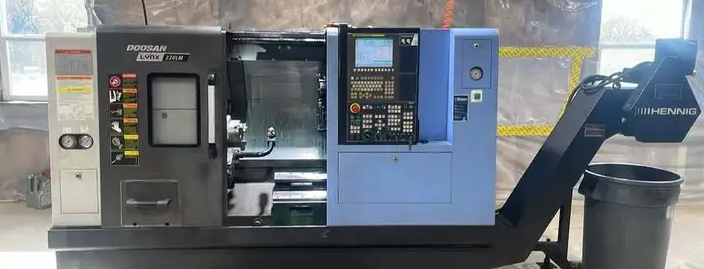

Doosan Fanuc OiTD CNC 6,000 RPM LYNX 220LMA 3 Axis

X-axis travel: 6.9"
Z-axis travel: 21.6"
C-axis programmable angle minimum: 0.001°
C-axis repeatability: ±0.006°
C-axis positioning accuracy: 0.0167°
Control: Fanuc OiTD CNC
Bar capacity: 2"
Swing over bed: 20"
Maximum turning diameter: 9.8"
Maximum turning length: 20"
Spindle speed range: 60 - 6,000 RPM
Spindle nose: A2-5
Spindle bore diameter: 2.40"
AC spindle motor 15 min rating: 20 HP
Maximum spindle torque 15 min rating: 70.4 ft-lbs
Standard chuck size: 6.5"
Tailstock: Yes
Number of turret stations: 12
Number of turret index positions: 24
Tool holder type: BMT 45P
Turning tool shank size: 0.75"
Boring bar diameter: 1.25"
Turret index time (next station swivel): 0.15 sec
Turret index repeatability: ±0.0005°
Rapid traverse X-axis: 1,181 IPM
Rapid traverse Z-axis: 1,417 IPM
X-axis ball screw diameter: 1.1"
Z-axis ball screw diameter: 1.3"
X-axis feed thrust continuous/intermittent: 1,398 / 2,237 lbs
Z-axis feed thrust continuous/intermittent: 1,165 / 1,864 lbs
X-axis repeatability: ±0.00008"
Z-axis repeatability: ±0.00012"
Live tooling: Yes
Full C-axis: Yes
Tool presetter: Yes
USB port: Yes
Hennig chip conveyor: Yes
High pressure coolant pump with tank: Yes
Oil skimmer: Yes
3 radial live toolholders: Yes
1 axial live toolholder: Yes
Machine dimensions: 104" x 64"
Machine weight: 7,400 lbs
