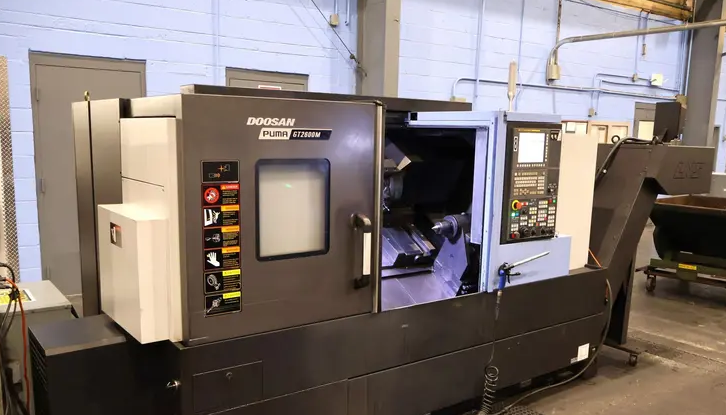

Doosan FANUC OiTF CNC control with Doosan EZ Guide i conversational programming 3500 RPM PUMA GT2600M 2 Axis

X-axis travel 10.4"
Z-axis travel 26.8"

Tool setter
Tailstock
3.23" bar capacity
Swing 24.8"
Swing over saddle 18.1"
Max cutting diameter 16.1"
Spindle speed 3,500 RPM
Spindle motor 30 HP
Spindle bore 3.6"
Spindle nose A2-8
Live milling speed 5,000 RPM
Live milling motor 7.4 HP
Rapid traverse rate X-axis 945 IPM
Rapid traverse rate Z-axis 1181 IPM
Chuck size 12" Samchully HS-12 3-jaw hydraulic chuck
Turret stations 12
3 color tower light
Way lube belt skimmer
LNS Turbo side discharge chip conveyor with M-code capability
Auto door
Misc. stick and boring tool holders
3 live holders: (2) X-axis and (1) Z-axis
Solid box way construction on heavy duty one-piece Meehanite cast iron bed
Power on hours 15,004
Run time hours 4,581
Cutting time hours 2,775
Dimensions 133.7" x 67.2" x 70" H
Weight 9,590 lbs
