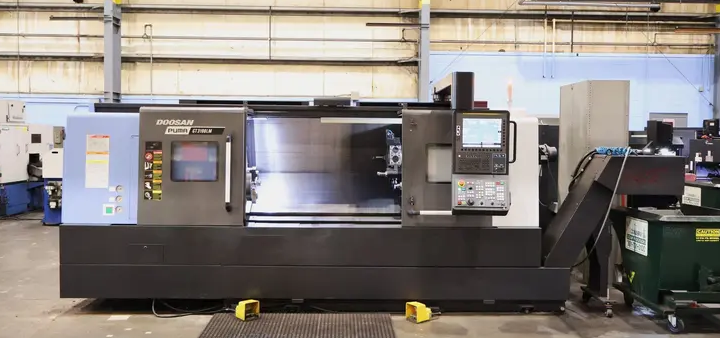

Doosan FANUC OiTP CNC control with Doosan EZ Guide i conversational programming 2,800 RPM PUMA GT-3100LM 2 Axis

Tool setter
Tailstock
LNS Turbo HB side discharge chip conveyor with M-code capability
145 PSI high pressure coolant pump (upgrade)
Way lube oil skimmer
Misc. fixed holders included in sale
Eppinger Preci-Fex rotary holders: (2) X-axis live, (1) Z-axis live
Solid box way construction on heavy duty one-piece Meehanite cast iron bed
Bar capacity 4"
Swing 28.3"
Max cutting diameter 14.8"
Machining length 49"
Spindle speed 2,800 RPM
Spindle motor 30 HP
Sub spindle No
Chuck size 12.4" 3-jaw Samchully MH-212 hydraulic chuck
Turret stations 12 with 24-position indexing
Dimensions 175.8" x 94.3" x 83.1" H
Weight 15,500 lbs
Power on hours 8,326
Run time hours 818
Cutting time hours 2,972
