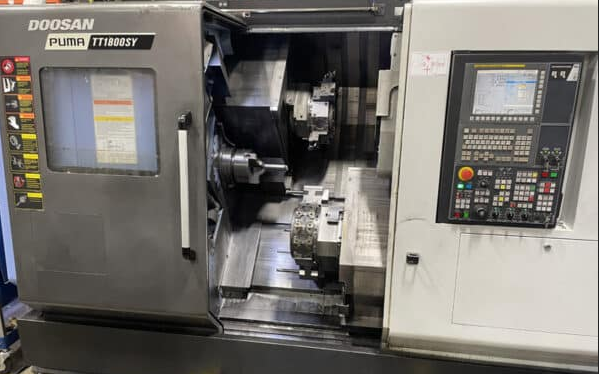

Doosan Fanuc Series 31i-Model B 5000 RPM PUMA TT1800SY 8 Axis

X-axis rapid traverse 787 IPM
Z-axis rapid traverse 1575 IPM
X1-axis travel distance 6.5"
X2-axis travel distance 7.5"
Y-axis travel distance 3.9"
Z1-axis travel distance 27.6"
Z2-axis travel distance 28.4"
A-axis travel distance 30.3"

Fanuc Series 31i-Model B
Bar working diameter 2.6"
Swing over bed 9.1"
Swing over saddle 9.1"
Recommended turning diameter 8.3"
Max. turning diameter (upper/lower) 9.1" / 9.1"
Max. turning length 9.1"

Main spindle speed 5000 RPM
Main spindle power 29 HP
Main spindle torque 154 ft-lbs
Sub spindle speed 5000 RPM
Sub spindle power 29 HP

Max. rotary tool speed 5000 RPM
Rotary tool motor power 7.5 / 1.5 HP
12-position turret
Turret indexing time 0.15 sec
8″ 3-jaw chuck
Royal QG-65 collet chuck
Barfeeder interface

Chip Blaster GV3-120 1000 PSI high pressure coolant
Sub spindle part ejector and catcher
Main spindle part catcher
Side eject chip conveyor
All available tooling
Machine dimensions (LxWxH) 154″ x 89″ x 82″
Machine weight 19,401 lbs
