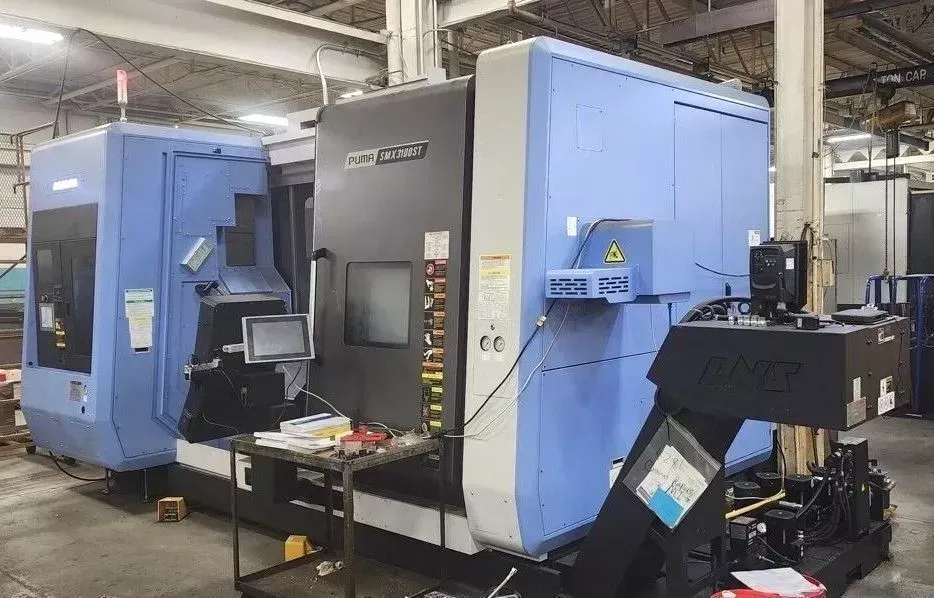

Doosan Fanuc Series 31i-Model B5 CNC Control 3000 Max RPM DN SOLUTIONS Puma SMX3100ST

X-Axis Travel 27.4"
Z-Axis Travel 62.4"
Y-Axis Travel 11.8"
B-Axis Head Tilt +/- 240°
C1/C2 Axis Index Full C-Axis
CNC Control Fanuc Series 31i-Model B5 CNC Control with Doosan Easy Operation Package
Bar Capacity 4.1" Bore (configured for 2.875")
Max Swing over Bed Upper / Lower 26"
Center Distance 60.6"
Main Spindle Chuck Samchully Hch-18 18" 3-Jaw
Sub Spindle Chuck Samchully Mh-212 12" 3-Jaw
Sub Spindle Speed 4000 RPM
Spindle Speed 3000 Max RPM
Main Motor 40 Hp
Sub Spindle Motor 35 Hp
Live Tooling Yes
Live Tooling Speed 12,000 Max RPM
Live Tooling Motor 35 Hp
Milling Spindle Taper Capto C6 Taper
ATC 80 Station ATC
Machine includes LNS Barfeed
Machine includes Renishaw Tool & Parts Probing System
Machine includes RPM600 Parts Probe
Machine includes Renishaw TRS2 Laser Tool Breakage Detection
Machine includes LNS MF2 Filtering Chip Conveyor with Variable Speed Drive
Machine includes Complete Coolant System and Tank
Machine includes Tool Presetter
Machine includes (3) Capto C6 Tool Holders
Machine includes (5) Live Tools, Live Tools, and Static Tool Holders
Machine includes Serrated Collets 1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8, 2 1/4, 2 3/8, 2 1/2, 2 5/8, 2 3/4, 2 7/8, 3, 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4, 4, 4 1/4, 4 3/8
Machine includes Smooth Collets 3 5/8, 3 7/8
Machine includes Air Chuck with 5.5" Bore on Pallet
Machine includes Full C-Axis on Both Spindles
Machine includes Lower X/Z Axis Live Milling & Static Tool Turret with 12 Stations All Live Capable
Machine includes 15" Display
