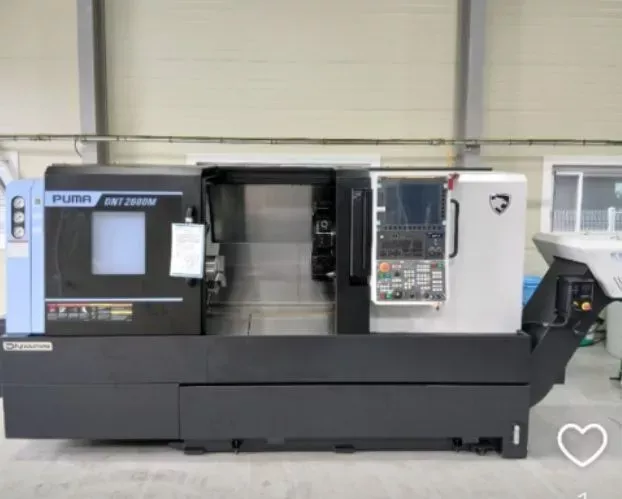

Doosan FANUC Series I CNC 3,500 RPM DNT 2600M 4 Axis

X1-axis travel: 10.2″
Z1-axis travel: 26.8″
C1-axis travel: 0.001°
W-axis travel (sub spindle): 0

Rapid traverse rate X1: 945 in/min
Rapid traverse rate Z1: 1,181 in/min
Rapid traverse rate C: 220
Spindle torque: 459
Gear ranges: 0
Control: FANUC Series I CNC
CNC control
Swing over bed: 25.6″
Machining length: 25.9″
Distance between centers: 27″
Distance between spindles: 0″
Chuck size 1: 10″
Spindle nose 1: A2-8
Spindle bar capacity 1: 3.2″
Turning diameter (shaft diameter): 16.1″
Spindle speeds 1: 3,500 RPM
Spindle horsepower 1: 34.9 hp
Spindle bore diameter 1: 3.6″
Turret configuration 1: 12
Turret rotary tool spindle speed 1: 5,000 RPM
Turret rotary tool horsepower 1: 7.4 hp
Tailstock quill diameter: 3.9″
Tailstock taper: MT 5
Tailstock quill travel: 3.9″
Programmable tailstock: Yes
Tailstock travel: 26.8″
Bar capacity: 3.2″
Tailstock: Yes
Live tooling: Yes
Sub spindle: No
(2) O.D. rotary heads
(2) I.D. rotary heads
Standard static holders
Tool presetter
Chip conveyor
10″ 3-jaw hydraulic chuck
Hydraulic chuck clamp confirmation
Signal tower
Programmable body and quill tailstock
USB port & Ethernet port for DNC operation
